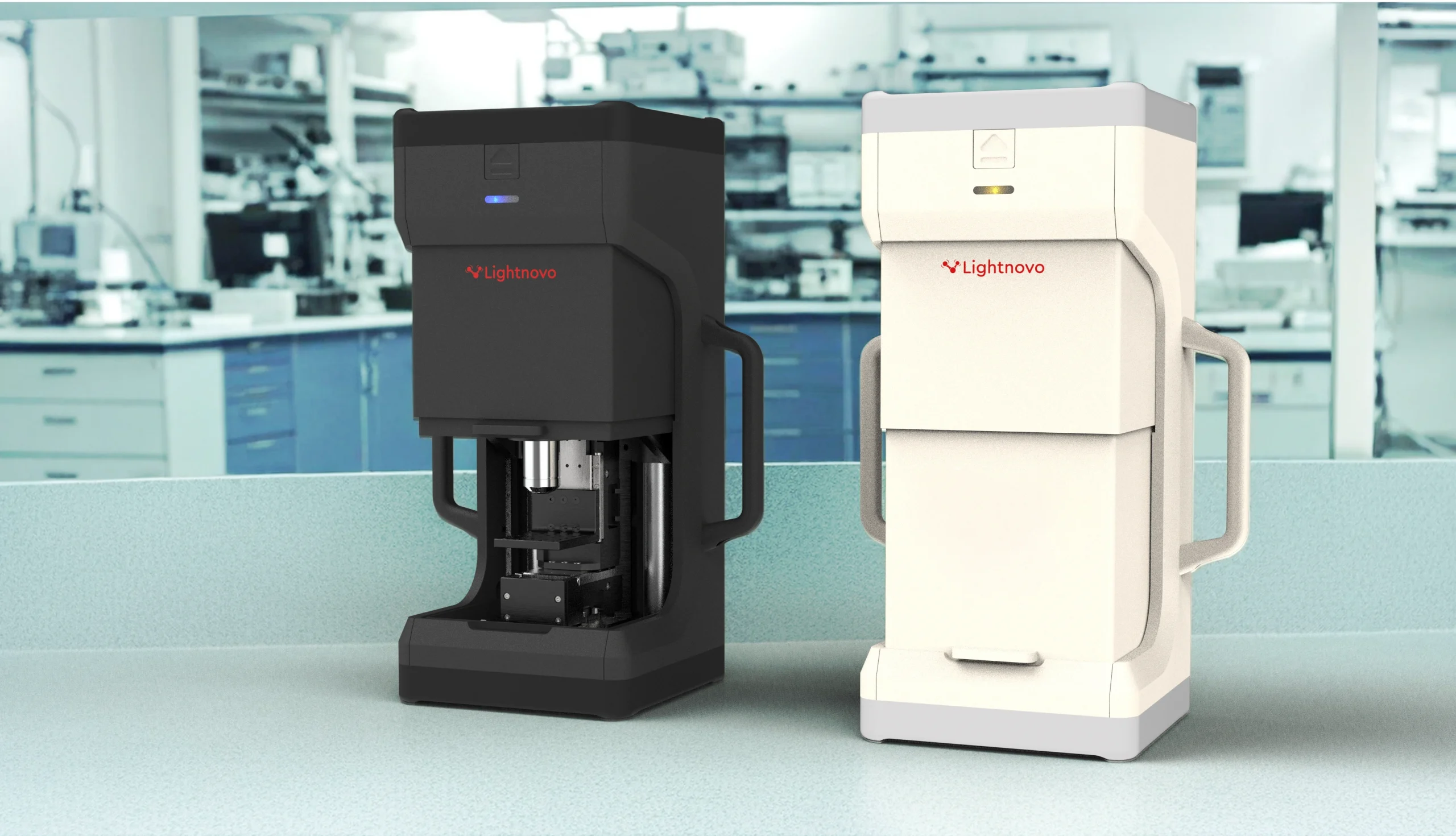

miniRaman Microscope
The world’s smallest confocal and modular Raman microscope
Unique Selling Points
miniRaman Microscope Benefits miniRaman Microscope Benefits miniRaman Microscope Benefits
Ultra-Compact Design
High-Resolution Mapping
Dual Operation Modes
Modular & Flexible
Affordable Excellence
Unique Technology Unique Technology Unique Technology
The miniRaman microscope is an innovative confocal and modular equipment based on the miniRaman spectrometer, with a patented, integrated reference channel. This innovative technology ensures automatic calibration by correcting for laser wavelength drift delivering accurate and reliable results. Due to the unique, patented technology miniRaman microscope has very high throughput, perfect wavenumber accuracy and Raman intensity calibration via in-build reference channel.
Optical schema of miniRaman MRs. See details for miniRaman MRs patent here:
https://patentscope.wipo.int/search/en/detail.jsf?docId=WO2019145005
Technical Specifications Technical Specifications Technical Specifications
| Feature versus model | miniRaman microscopy platform motorized | miniRaman microscopy platform manual | miniRaman microscopy platform focusing stage |
|---|---|---|---|

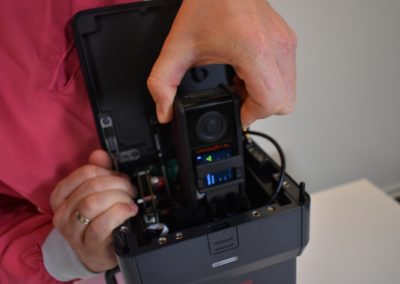

| Compatible spectrometers | miniRaman spectrometers miniRaman Pro spectrometers |
||
| Lateral resolution* | 800 - 900 nm | ||
| Axial resolution or confocality* | 2,5 – 3 µm | ||
| White light microscopy | Reflected with simultaneous visualization of laser spot and Raman acquisition | Not included | |
| Microscopy configuration | up-right and inverted | ||
| Mapping travel range in XYZ | 30 x 30 x 30 mm | 10 x 10 x 13 mm | |
| Minimum step size | 500 nm | 5 µm | |
Restriction on wavelengths that can be interchanged into microscope platform.
* Resolution depends on the laser wavelength and spectrometer used. Values represent the use of miniRaman spectrometers,all wavelengths with microscope objective NA = 0.95, 100x magnification.
Extra Features Extra Features Extra Features

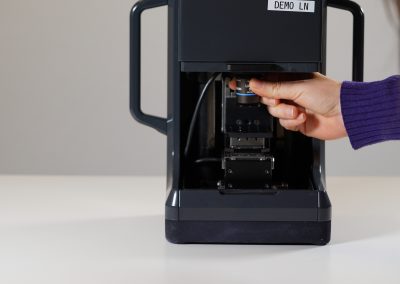

Small Size
(175 mm x 180 mm x 410 mm)
Lightweight
(9.5 - 11.5 kg)
White light microscopy reflection
with simultaneous visualization of laser spot and Raman acquisition
Microscopy Configuration
up-right and inverted
Axial and Lateral step
500 nm
Applications Applications Applications
For researchers, industries, universities
Life Sciences & Health
Biosciences, pharmaceuticals,
skin diagnostics, cosmetics
Materials & Nanotechnology
Polymers, nano-materials, semiconductors,
Surface Enhanced Raman Scattering (SERS)
Industrial & Chemical Analysis
Chemicals, geology, forensics,
metallurgy, and food safety
Quality Control & Authentication
Alcohol quality,
counterfeit product detection
Download Miraspec Download Miraspec Download Miraspec
Click to download Miraspec Software for PC (Windows 10, 11) and smartphone (Android)
Accesories Accesories Accesories
- RMS thread adaptor for LN Spectrometers and Microscopes
- M25/0.75 thread adaptor for LN Spectrometers and Microscopes
- M27/0.75 thread magnetic adaptor for LN Spectrometers and Microscopes

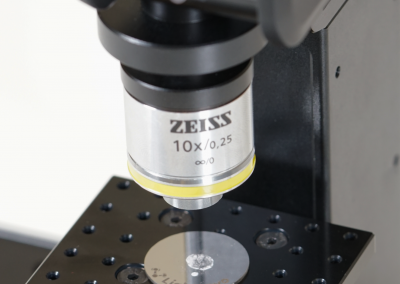

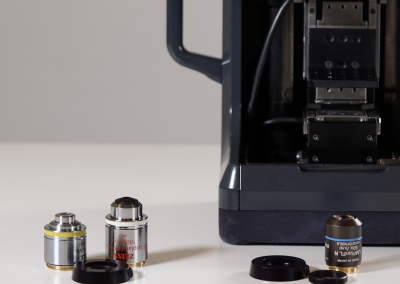

- 10x objective - checked for use with Raman spectroscopy
- 20x objective - checked for use with Raman spectroscopy

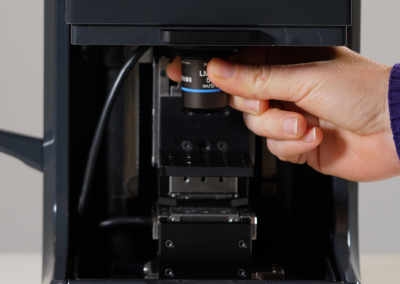

- 50x objective - checked for use with Raman spectroscopy
- 100x objective - checked for use with Raman spectroscopy
- 96 well plate holder

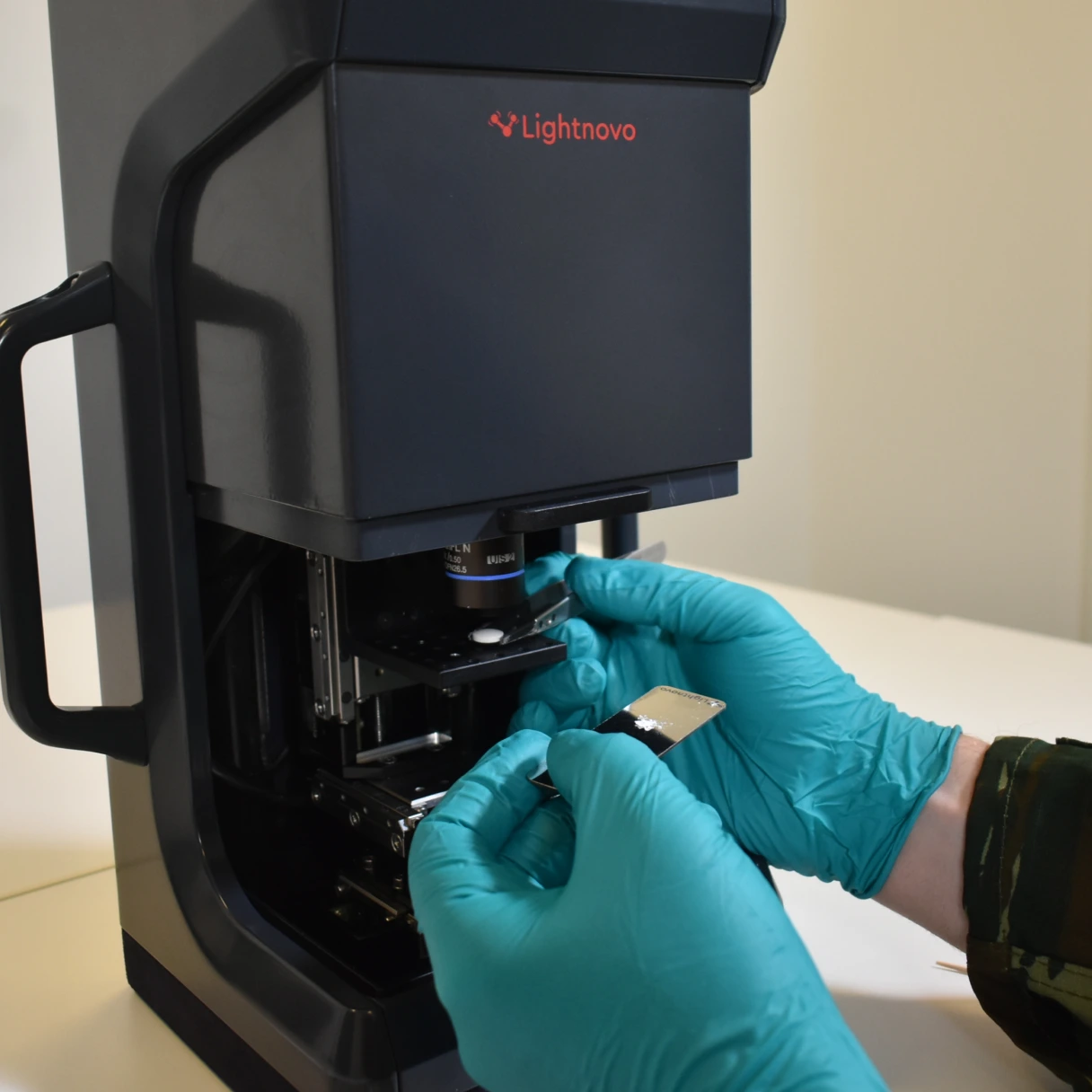

- Microscopy slide holder
