miniRaman Pro Spectrometer
Lab-level performance into handheld systems
Unique Selling Points
miniRaman Pro Spectrometer Benefits miniRaman Pro Spectrometer Benefits miniRaman Pro Spectrometer Benefits
Flexibility & Modularity
Small footprint – Handheld
(580 g)
- Improved confocality
- Expanded beam for better confocality in microscopy applications
- Compatible with Lightnovo microscopes and stages
- Available as OEM solutions
ON-THE-FLY ID
Extended Spectral Range
- Reliable measurement
- High performance for calibration models
- Improved quantification
- Advanced Software features and calibration models
- Extended Libraries
Stabilized laser source
Light Compression
Constant calibration
- High accuracy of wavenr calibration
- Temperature stabilisation (both from quality of the laser and IP)
- Technology allows to reach extreme sensitivity compared with deep-cooled CCD
Unique Technology Unique Technology Unique Technology
miniRaman Pro combines two patented optical innovations. Light Compression concentrates the Raman spectrum onto a single CMOS detector row, minimizing detector noise and enabling high sensitivity and SNR without deep cooling. An independent off-axis reference channel simultaneously records an internal polystyrene standard, spatially separated from the sample spectrum to prevent signal overlap. This reference enables automatic Raman-shift and intensity calibration after every acquisition, compensating laser wavelength and power drift. Combined with close-packed optics and a high-efficiency transmission grating, this architecture delivers stable, reproducible, research-grade Raman performance in a compact handheld instrument.
Key technology advantages:
- Patented miniaturized Raman optical design
- Integrated reference channel for automatic calibration
- Accurate correction of laser wavelength drift
- High wavenumber calibration accuracy
- Temperature-stabilized laser performance
- High sensitivity in a compact handheld format
- Reliable spectra for identification and quantitative analysis
Technical Specifications Technical Specifications Technical Specifications
| Feature versus model | PRO miniRaman spectrometer 785 | PRO Dual miniRaman spectrometer 785/660 | PRO miniRaman spectrometer 830 |
|---|---|---|---|
| Laser wavelength | 785 nm | 785/660 nm | 830 nm |
| Power on sample* | 5* - 400 mW 0.5** - 70 mW |
5* - 400 mW (785) 5* - 60 mW (660) 0.5** - 70 mW (785) 5 - 60** mW (660) |
5 - 400 mW |
| Spectral Range | 100 - 3100 cm⁻¹ | 100 - 3100 cm⁻¹ (785) 2700 – 3700 cm⁻¹ (660) |
80 - 2400 cm⁻¹ |
| Spectral slit size | 20, 35, 50um | 20, 35, 50um | 20, 35, 50um |
| Spectral Resolution** | 0.25nm/px, 5-8cm⁻¹ / 7-10cm⁻¹ / 9-12cm⁻¹ *** | 0.25nm/px, 5-8cm⁻¹ / 7-10cm⁻¹ / 9-12cm⁻¹ (785) 0.36nm/px, 12-15cm⁻¹ / 13-17cm⁻¹ / 15-18cm⁻¹ (660)*** |
0.24nm/px, 6-9cm⁻¹ / 7-11cm⁻¹ / 9-12cm⁻¹ *** |
| Signal-to-noise ratio*** | 2500: 1 | 2500*:1 (785) 600*:1 (660) 1000**:1 (785) 600**:1 (660) |
2000:1 |
Specifications
* multimode
** confocal
*** corresponding to slit sizes 20/35/50um
Portfolio Positioning – Raman for all Portfolio Positioning – Raman for all Portfolio Positioning – Raman for all
miniRaman → Identification compact and accessible Raman solution for standard measurements
miniRaman Pro → Quantification premium performance for handheld Raman spectrometer
RG → Research Grade – Fingerprint & CH (405, 532,638nm)
RGs Pro →Advanced structural insight
OEM availability
| Parameter | miniRaman | miniRaman PRO | RGs | RGs Pro |
|---|---|---|---|---|
| Spectral Range (cm⁻¹) | 270 - 3700 | 100 - 3100 | 70 - 4000 | 25 - 4000 |
| Resolution (cm⁻¹) | 7 - 17 | 7 - 10 | 3 - 5 | 3 - 5 |
| Wavelenghts (nm) | 660 / 785 | 660 / 785 / 830 | 405 / 532 / 638 / 785 / 830 | 532 / 785 / 830 | Laser Power (mW) | 5- 50 | 5 - 400 | 5 - 500 | 5 - 500 |
Extra Features Extra Features Extra Features
Small Size
134x75x47 mm
Lightweight
580 g
One Button Operation
Low Power Consumption
Connectivity
Bluetooth and USB
Use cases & Applications Use cases & Applications Use cases & Applications
Life Sciences & Health
Biosciences, pharmaceuticals,
skin diagnostics, cosmetics
Materials & Nanotechnology
Polymers, nano-materials, semiconductors,
Surface Enhanced Raman Scattering (SERS)
Quality Control & Authentication
Alcohol quality,
counterfeit product detection
Industrial & Chemical Analysis

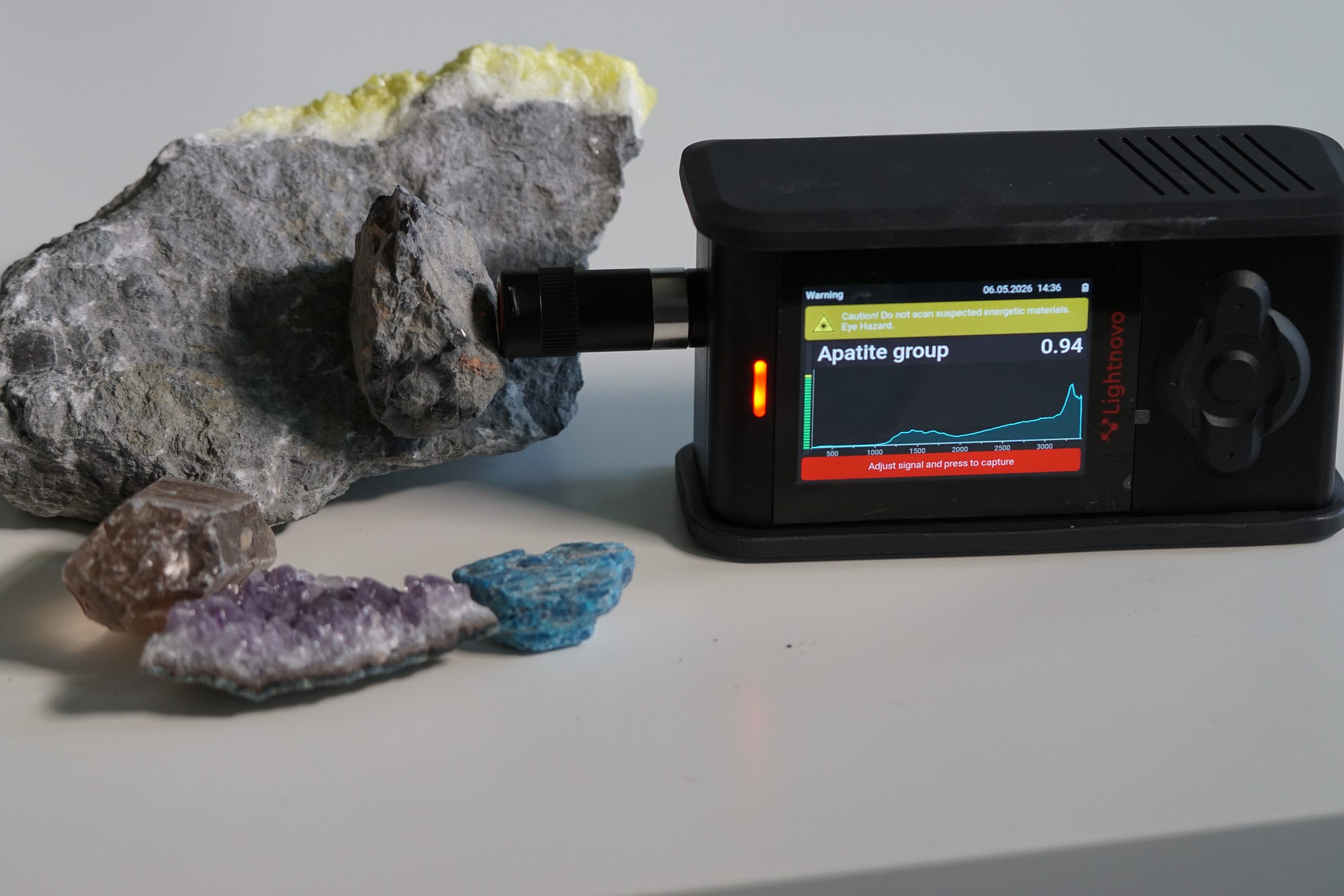

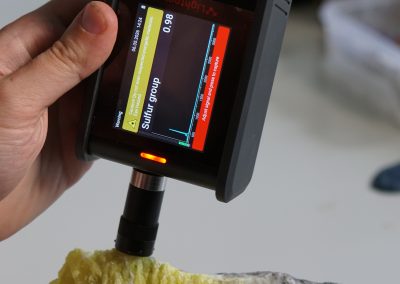

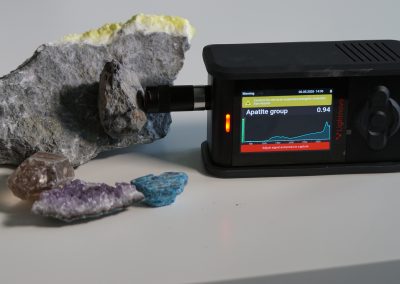

Chemicals, geology, forensics,
metallurgy, and food safety
MiraspecFlow Installer MiraspecFlow Installer MiraspecFlow Installer
One month FREE TRIAL
Please, enter your Full Name & Email to get access to one month FREE TRIAL
*for PC
Accesories Accesories Accesories
- Short distance probe variable (with tool), NA=0.64, WD=0-2500um
- Middle distance probe (NA = 0.2, WD = 10 mm) for LN Spectrometers
- Long distance probe (NA = 0.1, WD = 25 mm) for LN Spectrometers
- Universal probe (NA=0.2, WD = 10mm) for LN Spectrometers
- Contact probe variable (NA = 0.6, WD = 0-300 um) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 10 um, PSF = 10 μm) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 50 μm, PSF = 15 μm) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 100 μm, PSF = 20 μm) for LN Spectrometers
- Contact probe adjustable (NA = 0.6, WD = 0-2500 um) for LN Spectrometers
View all
- Probe extender (80 mm) for LN Spectrometers
- Probe extender (160 mm) for LN Spectrometers

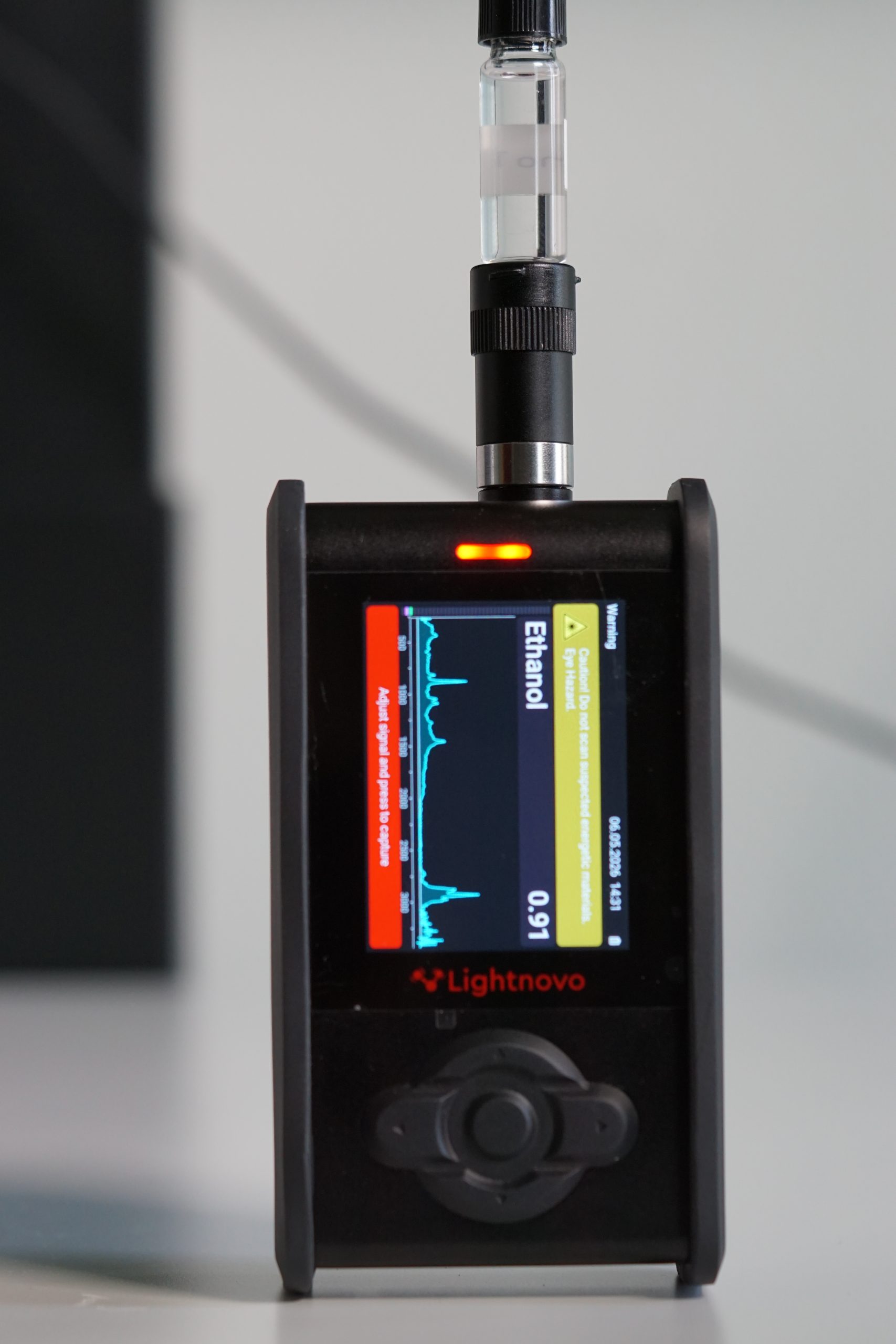

- Vial adaptor - side measurment for LN Spectrometers
- Vial adaptor - bottom measurment for LN Spectrometers
- Calibration tool for LN spectrometers with polystyrene
- Calibration tool for LN spectrometers with calcite
- Pill maker for LN Spectrometers
- Probe cover for LN Spectrometers
- Black out cover for Short/Middle & Long Distance probes.
- Disposible tips for LN Probes (Box of 30pcs)
- Disposible tips for LN Probes (20 boxes of 30pcs) (edited)
- Belt holster for miniRaman Spectrometer
- Charging Dock for miniRaman Spectrometer
- Carry case for miniRaman Spectrometer & miniRaman PRO spectrometer, standard
