Lightnovo Operator Portfolio
miniRaman and RG Operator Solutions
for Field Operators, Pharma and Trace Detection
Unique Selling Points

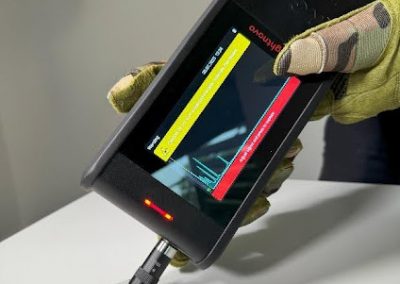

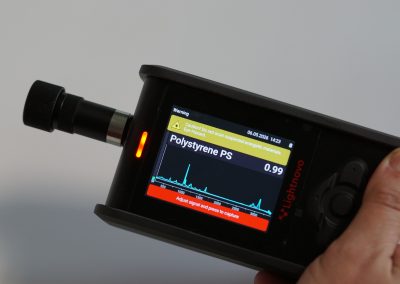

miniRaman Operator – Spectrometer miniRaman Operator – Spectrometer miniRaman Operator – Spectrometer

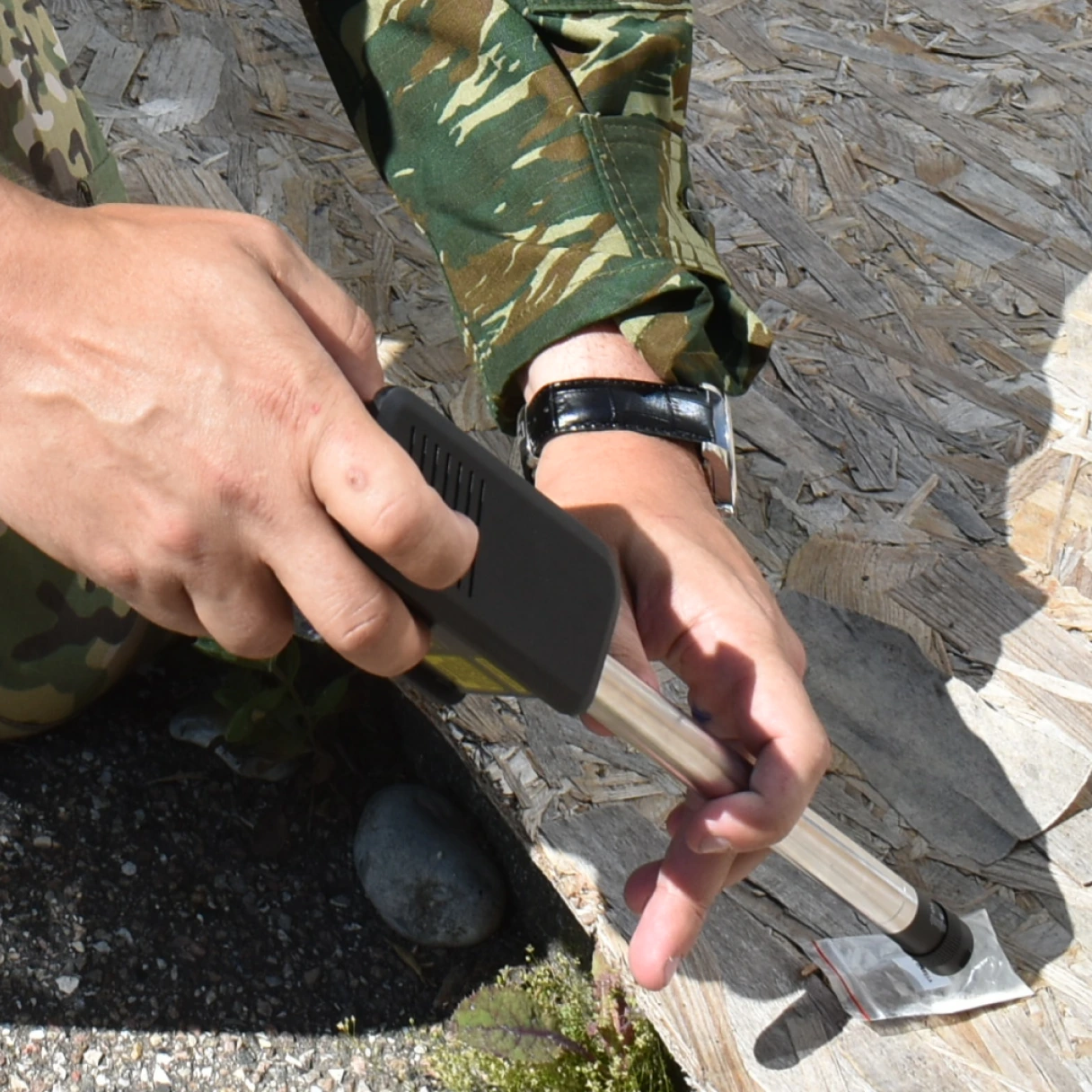

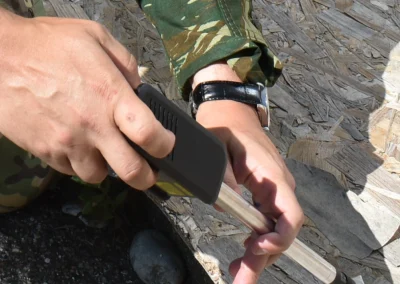

Handheld spectrometer for chemical identification and field operation
Compact design
fits in pocket or belt holder
One-button operation
instant start-up
Auto-calibration
with every measurement
Rugged:
IP67 & military-grade drop tested
Cost-effective & field-proven
Extensive Spectral Library

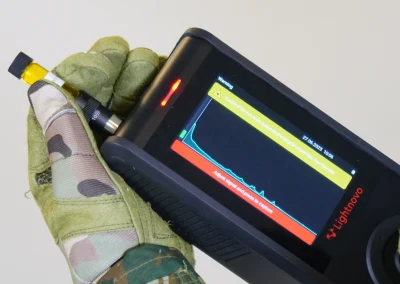

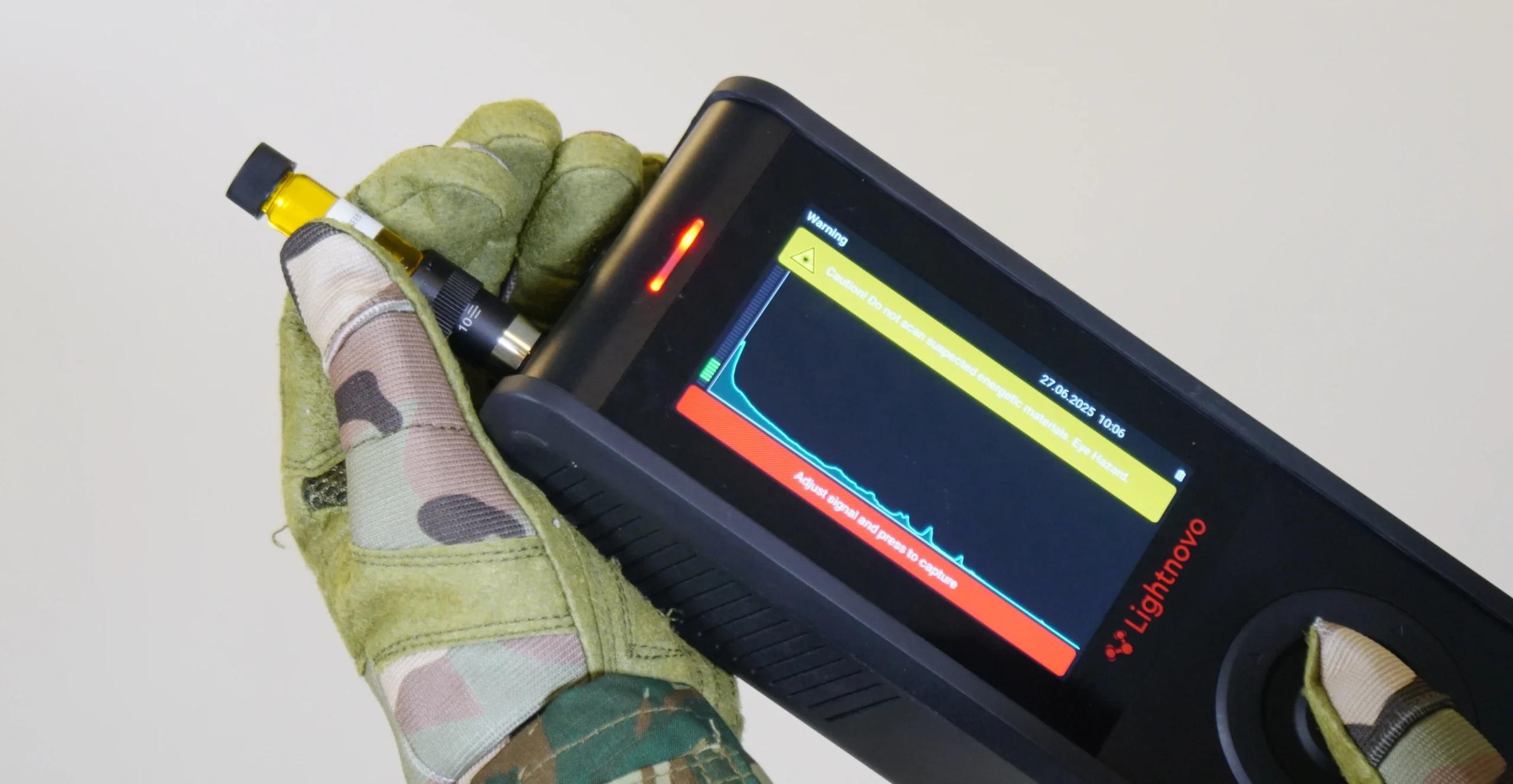

Research Grade Operator – RG Spectrometer Research Grade Operator – RG Spectrometer Research Grade Operator – RG Spectrometer
Compact research-grade Raman spectrometer for advanced chemical analysis
Portable field solution
High sensitivity & low detection limits
Range of customization options
Rugged:
IP67 & military-grade drop tested
Extensive Spectral Library
Compliant Software

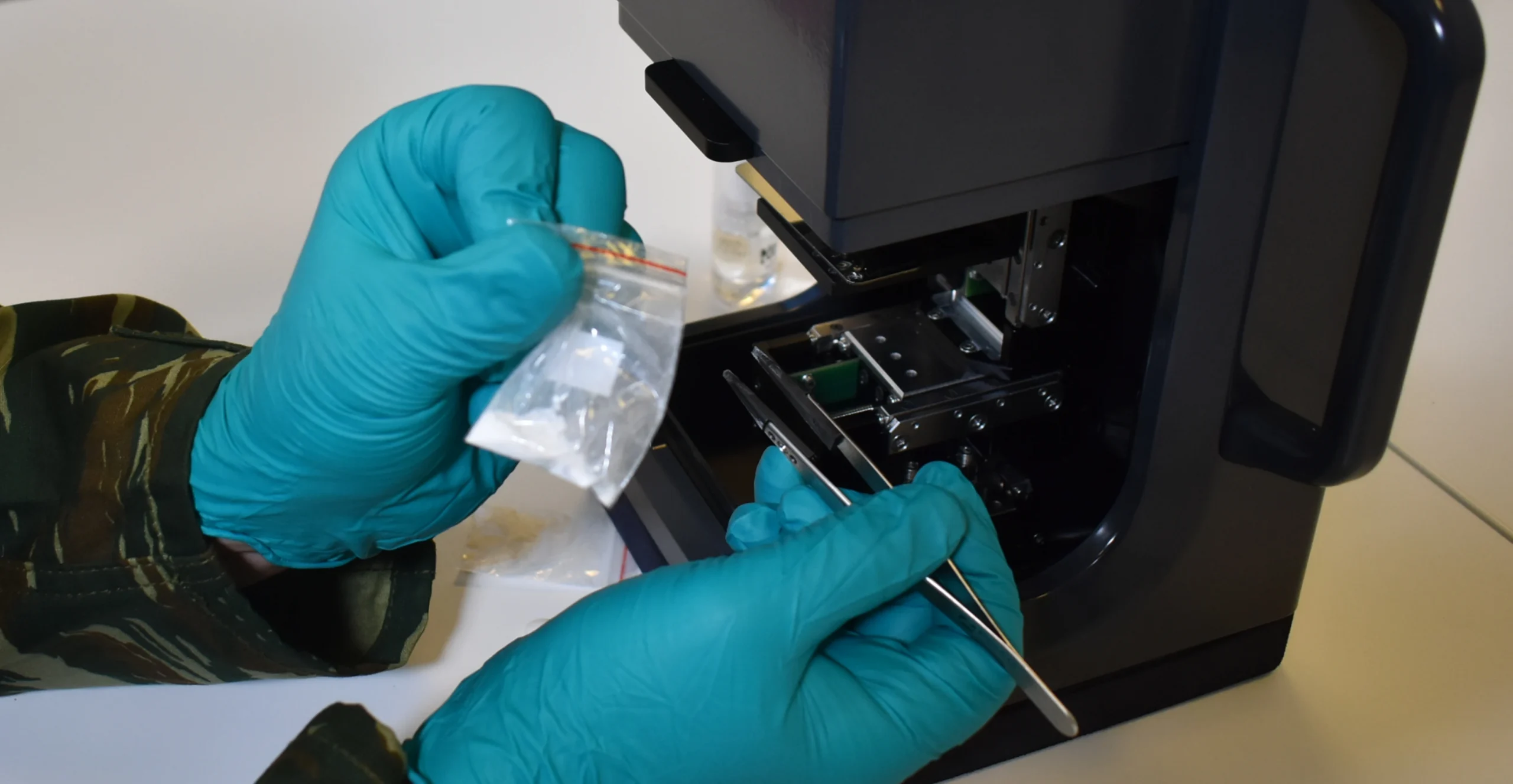

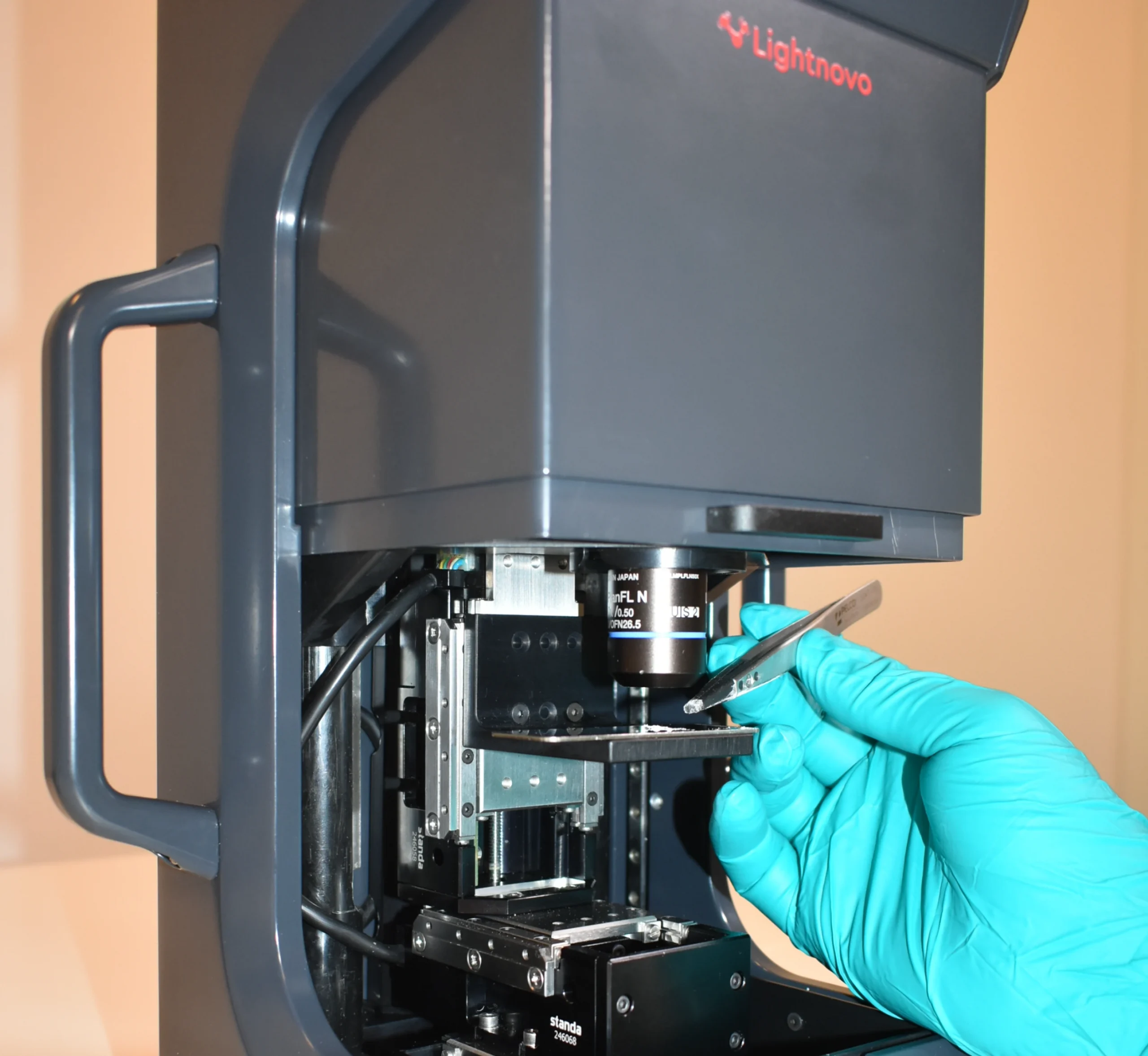

miniRaman Operator – Microscope miniRaman Operator – Microscope miniRaman Operator – Microscope

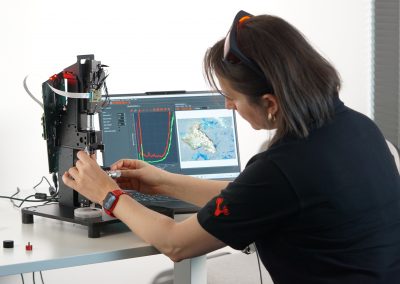

The world’s smallest confocal Raman microscope for trace detection
Ultra-Compact Design
High-Resolution Mapping
Dual Operation Modes
Modular & Flexible
Lightweight
(9.5 - 11.5 kg)
White light microscopy reflection
Customer Segmentation Customer Segmentation Customer Segmentation
Law Enforcement Officers
Customs Agents
First Responders
Military CBRNE Units
Pharma
Technical Specifications Technical Specifications Technical Specifications
| Parameter | miniRaman | miniRaman PRO | RGs | miniRaman Microscope |
|---|---|---|---|---|
| Description | Identification | Quantification | Fingerprint & CH | Trace detection |
| Spectral Range (cm⁻¹) | 270 - 3700 | 100 - 3100 | 70 - 4000 | 25 - 4000 |
| Resolution (cm⁻¹) | 7 - 17 | 7 - 10 | 3 - 5 | 3 - 5 |
| Wavelengths (nm) | 660 / 785 | 660 / 785 / 830 | 405 / 532 / 638 / 785 / 830 | 532 / 785 / 830 |
| Laser Power (mW) | 5- 50 | 5 - 400 | 5 - 500 | 5 - 500 |
| Sample size (mm) | n/a | n/a | n/a | 25 * 25 * 25 |
| Stage step size (nm) | n/a | n/a | n/a | 500 |
| Spatial resolution (nm) | n/a | n/a | n/a | 900 |
| Axial resolution (nm) | n/a | n/a | n/a | 3000 |
| Stage step control | n/a | n/a | n/a | Motorized/Manual |
Applications Applications Applications

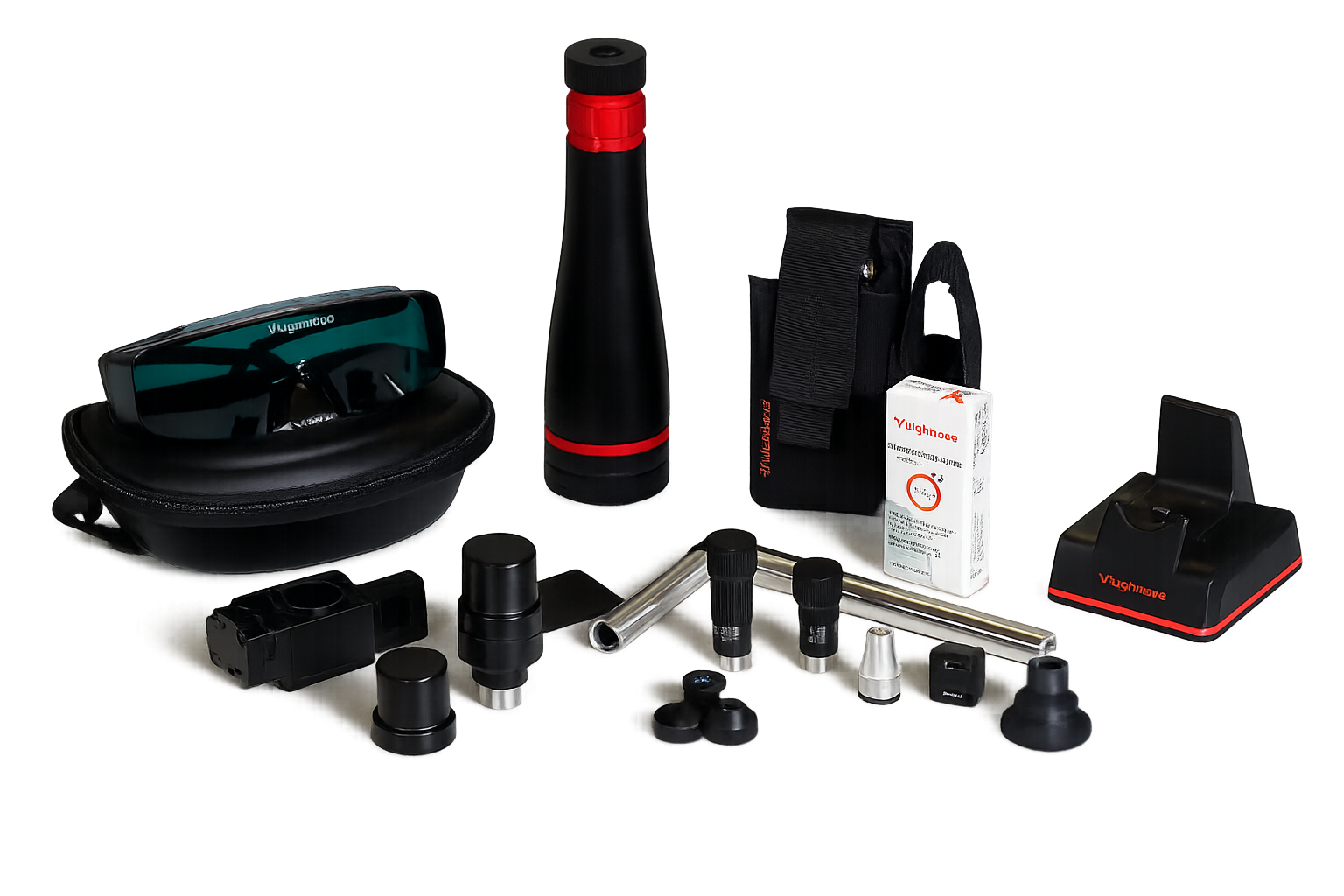

Accesories Accesories Accesories
Accesories Accesories Accesories
For Spectrometer:

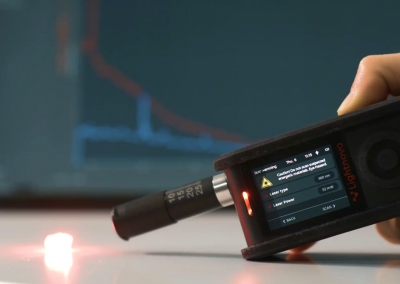

- Short distance probe variable (with tool), NA=0.64, WD=0-2500um
- Middle distance probe (NA = 0.2, WD = 10 mm) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 100 μm, PSF = 20 μm) for LN Spectrometers
- Operator Probe – decontamination friendly
- Contact probe adjustable (NA = 0.6, WD = 0-2500 um) for LN Spectrometers
- 90° Connector with Probe extender
- Probe Extender (80 mm) for LN Spectrometers
- Probe Extender (160 mm) for LN Spectrometers
- Vial adaptor - side measurement for LN Spectrometers
View more
- Short distance probe variable (with tool), NA=0.64, WD=0-2500um
- Middle distance probe (NA = 0.2, WD = 10 mm) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 100 μm, PSF = 20 μm) for LN Spectrometers
- Operator Probe – decontamination friendly
- Contact probe adjustable (NA = 0.6, WD = 0-2500 um) for LN Spectrometers
- 90° Connector with Probe extender
- Probe extender (80 mm) for LN Spectrometers
- Probe extender (160 mm) for LN Spectrometers
- Vial adaptor - side measurement for LN Spectrometers
- Vial adaptor - bottom measurement for LN Spectrometers
- Calibration tool for LN spectrometers with polystyrene
- Pill maker for LN Spectrometers
- Black out cover for Short/Middle & Long Distance probes.

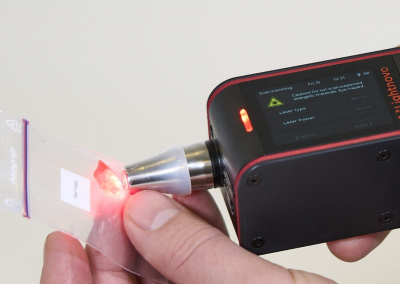

- Disposable tips for LN Probes (Box of 30pcs & 20 boxes of 30pcs)
- Belt holster for miniRaman Spectrometer
- Charging Dock for miniRaman Spectrometer
- Carry case
For microscope:
- RMS thread adaptor for LN Spectrometers and Microscopes
- M25/0.75 thread adaptor for LN Spectrometers and Microscopes
- M27/0.75 thread magnetic adaptor for LN Spectrometers and Microscopes
- 10x objective - checked for use with Raman spectroscopy
- 20x objective - checked for use with Raman spectroscopy
- 50x objective - checked for use with Raman spectroscopy
- 100x objective - checked for use with Raman spectroscopy
- 96-Well Plate Holde
- Microscopy slide holder
Use Cases Use Cases Use Cases

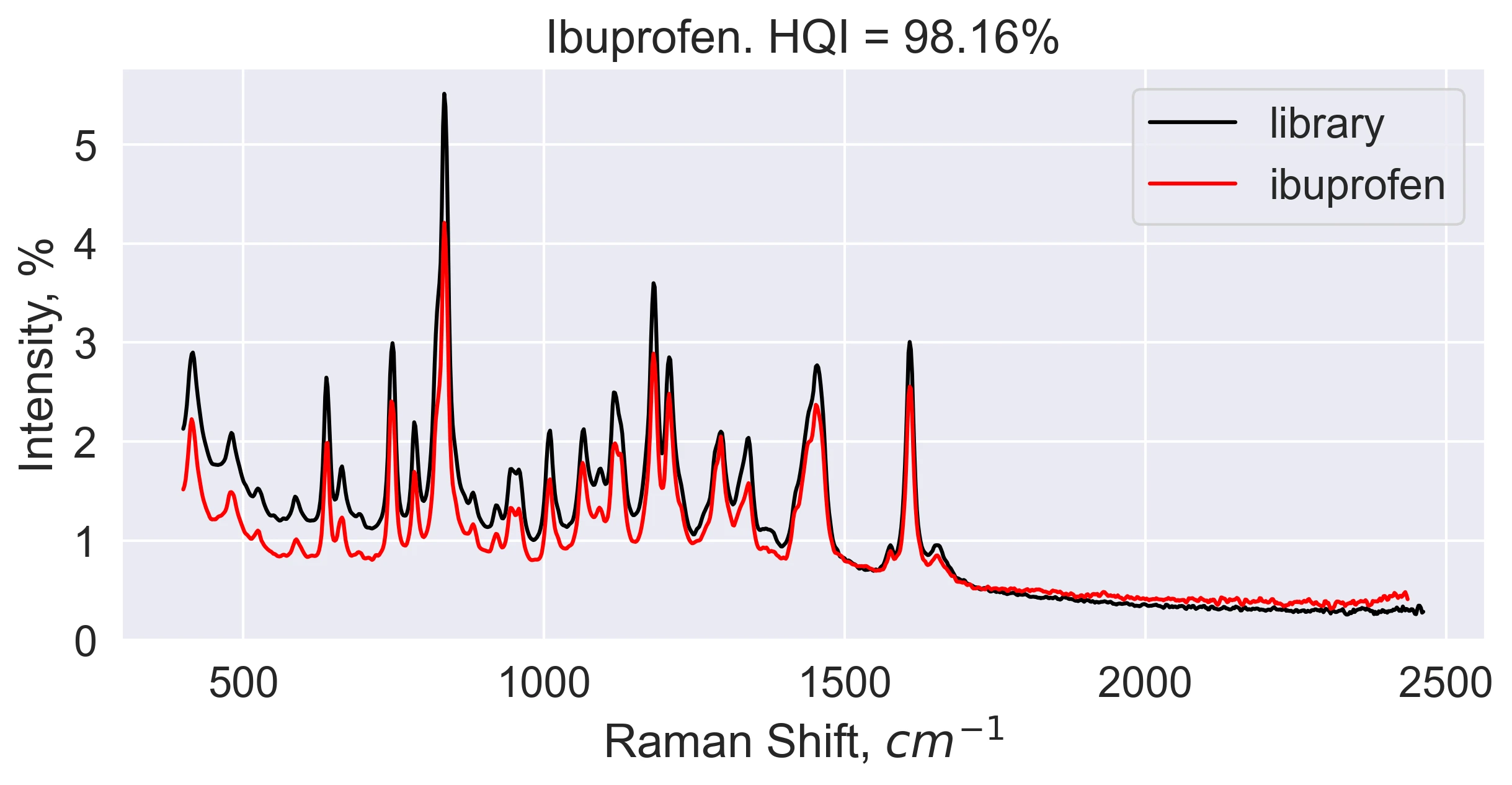

Application: Tablets/ Powders

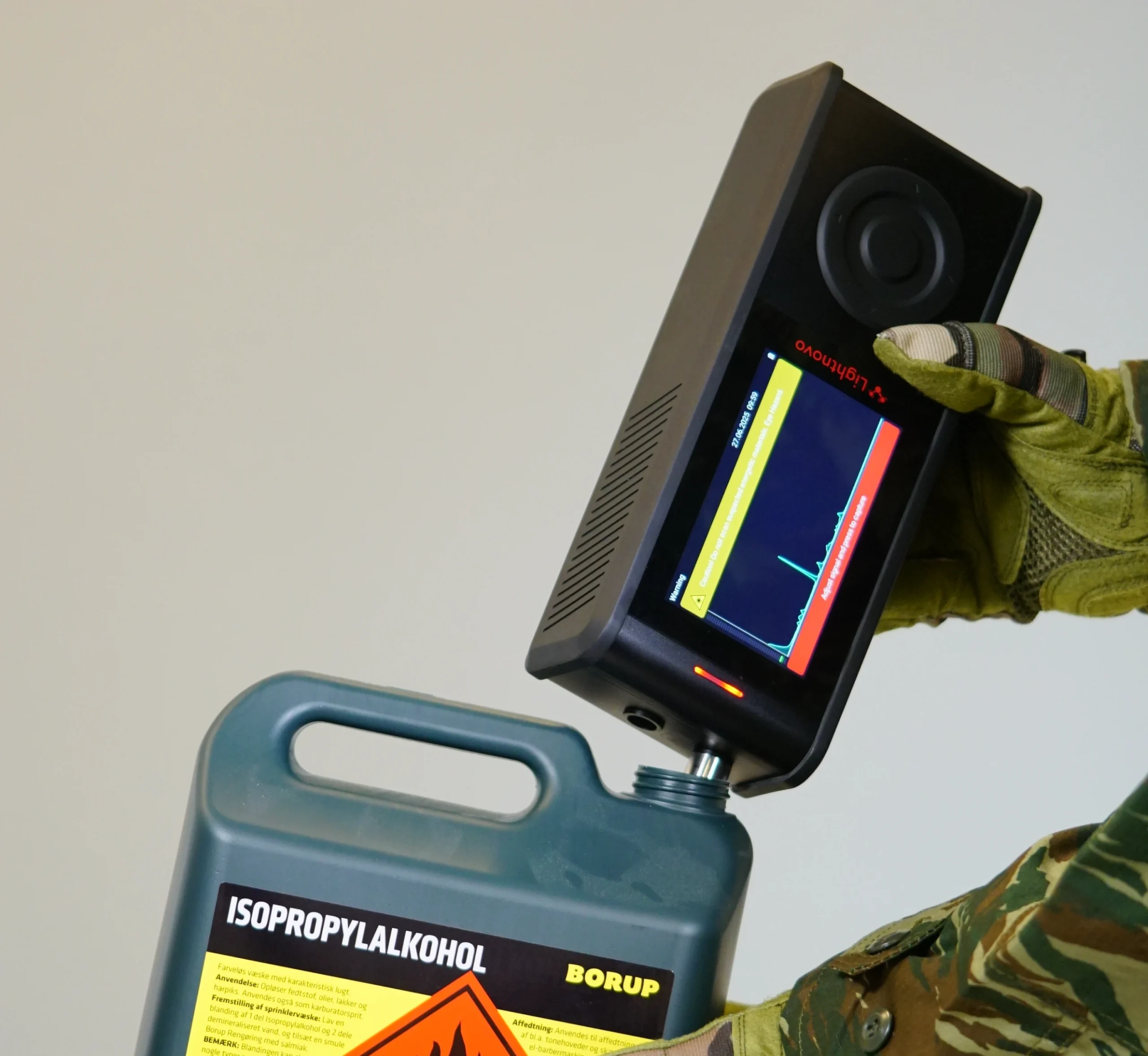

Application: Liquids (Methanol)
miniRaman spectrometer, equipped with a high-precision contact probe and powered by Miraspec software, enables direct chemical analysis of tables and powders, through plastic packaging. This innovative approach ensures rapid, non-invasive testing while delivering high-quality, reproducible results.
miniRaman Spectrometer, equipped with a high-precision liquid probe, ebales measurement of hazardous liquids from distance or through various packages. This innovative approach outperforms the state- of- the- art by a factor of 3.5x in pure substances.
MiraspecFlow Installer MiraspecFlow Installer MiraspecFlow Installer
One month FREE TRIAL
Please, enter your Full Name & Email to get access to one month FREE TRIAL
*for PC
MiraspecFlow App is coming soon MiraspecFlow App is coming soon MiraspecFlow App is coming soon
The mobile application provides additional operational and security functionalities, including:
- Monitoring and control of the miniRaman system health and status;
- Customization of acquisition parameters;
- Data collection and management;
- Synchronization of measurement data between the spectrometer, PC environment, and cloud infrastructure;
- User authorization and identification (security/access-control element) will be available with the CLOUD solution.
