miniRaman Spectrometer
Operator
Handheld spectrometer for
chemical analysis and field operation
Unique Selling Points
miniRaman Spectrometer Benefits miniRaman Spectrometer Benefits miniRaman Spectrometer Benefits
Compact design
Calibrates with every acquisition
Fast start-up / Easy to operate
Compatible with miniRaman Microscope
Cost-Effective
Unique Technology Unique Technology Unique Technology
The miniRaman Spectrometer is an innovative, miniaturized Raman spectrometer equipped with a patented, integrated reference channel. This innovative technology ensures automatic calibration by correcting for laser wavelength drift. The system continuously adjusts the Raman shift and intensity of the sample spectrum, delivering fast, accurate, and reliable results. These advanced features make the miniRaman spectrometer an ideal solution for material identification and precise quantitative measurements.

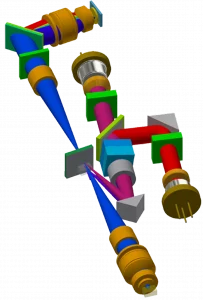

Optical schema of miniRaman MRs. See details for miniRaman MRs patent here:
https://patentscope.wipo.int/search/en/detail.jsf?docId=WO2019145005
Customer Segmentation Customer Segmentation Customer Segmentation
Law Enforcement Officers
Customs Agents
First Responders
Military CBRNe Units
Technical Specifications Technical Specifications Technical Specifications
| Feature versus model | miniRaman Standard | miniRaman SERS | miniRaman Dual | miniRaman Full Range | miniRaman Full Range SERS |
|---|---|---|---|---|---|
| Laser wavelength | 785 nm | 660 nm and 785 nm | 660 nm | 660 nm | |
| Power on sample* | 5-50 mW | 1–15 mW | 5–45 mW (660) 5–50 mW (785) |
10–80 mW | 1-15 mW |
| Spectral Range | 270-3100 cm⁻¹ | 2700-3700 cm⁻¹ (660) 300-2500 cm⁻¹ (785) |
270-3700 cm⁻¹ | 270-3700 cm⁻¹ | |
| Spectral Resolution** | 7, 9, 12 cm⁻¹ | 11, 14, 18 cm⁻¹ (660)
7, 9, 12 cm⁻¹ (785) |
11, 14, 17 cm⁻¹ | 11, 14, 17 cm⁻¹ | |
| Signal-to-noise ratio*** | 500:1 | 100:1 | 600:1 (660) 500:1 (785) | 500:1 | 100:1 |
Specifications
* Actual laser power range can differ ± 5% per device. Please contact us if you need specific laser power range values. Lower limit requires exposure time of 2 seconds.
** Slit size dependent; slit size can be customized (20,35,50 um slits).
*** Determined as peak signal-to-noise ratio of polystyrene spectrum at maximal laser power,
integration time 0.3s, number of repetitions 10.
Extra Features Extra Features Extra Features
Small size
(105 x 50 x 45 mm)
One button operation
IP67 / Military grade drop test
Large spectral library
Compliant Software
Applications Applications Applications
*no samlpe preparation required;
Non-destructive analysis, measurement through packaging.
Miraspec Miraspec Miraspec
Spectrometer system controlled by smartphone or PC via Bluetooth or USB-C cable.
| Data acquisition |
Laser power control
Exposure time control
Sensor gain control
Number of repetitions control
Spectral range control
|
|---|---|
| Data format |
Export data in the following formats: tsv, txt and jdx
|
| Data preprocessing options |
Spike correction
(Whittaker-Hayes, moving window)
Spectral smoothing
(Whittaker, asymmetric least squares, Savitzky-Golay)
Baseline correction
(rolling circle, rubberband, least squares, asymmetrically reweighted penalized)
Spectrum normalization
(Z-score, mean, Mean centre, MinMax, Unit Norm L1, Unit Norm L2)
Intensity normalization*
Laser mode-hop correction*
|
| Data Exploration |
Principal component analysis
Non-negative matrix factorization (SIMPLISMA-NNLS, MCR-ALS) |
| Qualitative analysis |
Material identification
(Pearson correlation, square Euclidean cosine, square first difference Euclidean cosine) Compatible libraries (>20,000 spectra)** Creation of spectral libraries |
| Quantitative analysis |
Principal component regression
Raman peak height/peak area calibration Partial Least Squares (PLS) calibration |
| Classification | Random Forest, Linear SVM, AdaBoost, Decision Tree, Hoefding Tree, Naïve Bayes, Perceptron, Softmax Regression |
*Patented Feature

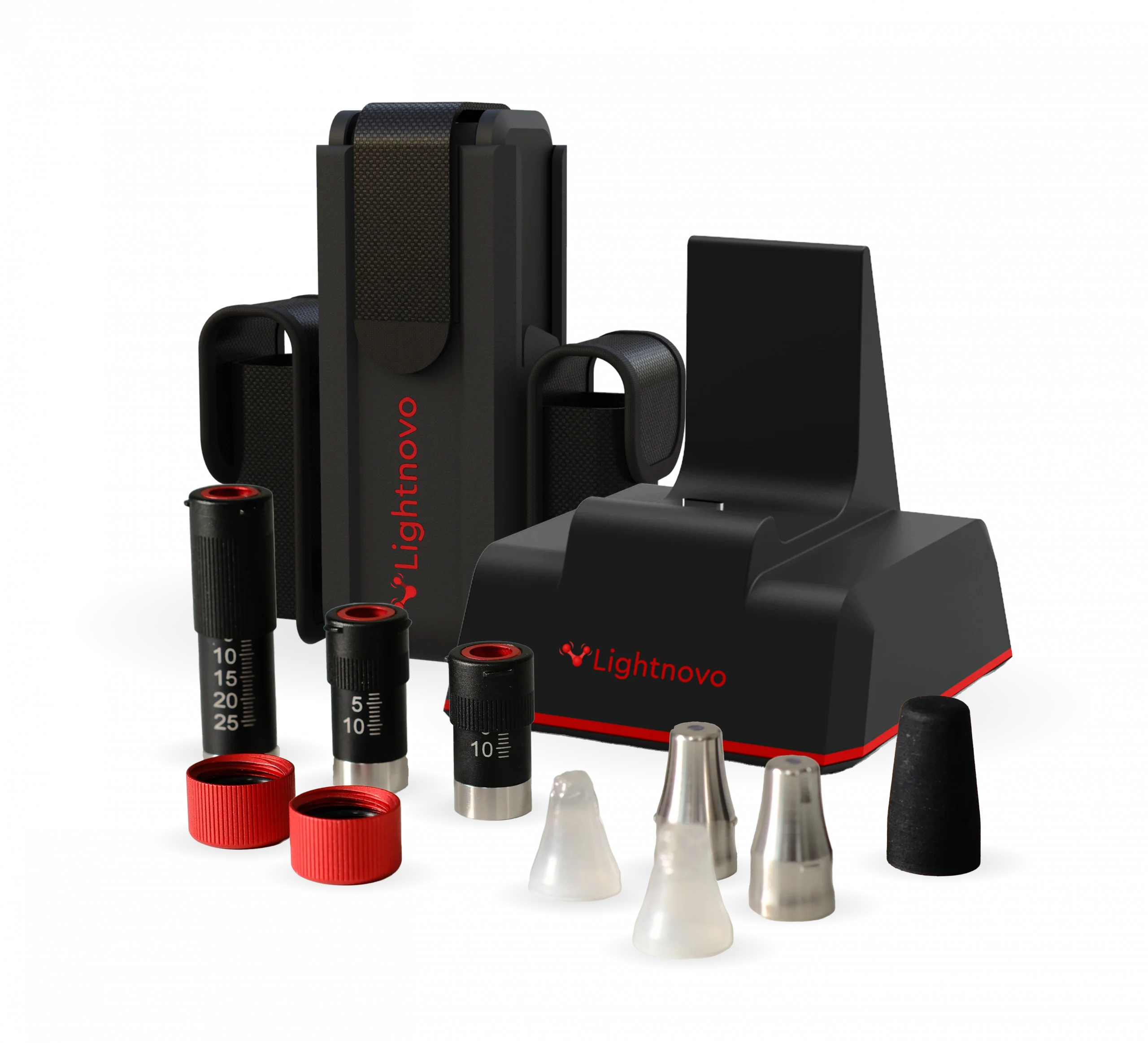

Accesories Accesories Accesories
- Short distance probe variable (with tool), NA=0.64, WD=0-2500um
- Middle distance probe (NA = 0.2, WD = 10 mm) for LN Spectrometers
- Long distance probe (NA = 0.1, WD = 25 mm) for LN Spectrometers
- Universal probe (NA=0.2, WD = 10mm) for LN Spectrometers
- Contact probe variable (NA = 0.6, WD = 0-300 um) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 10 um, PSF = 10 μm) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 50 μm, PSF = 15 μm) for LN Spectrometers
- Contact probe fixed (NA = 0.6, WD = 100 μm, PSF = 20 μm) for LN Spectrometers
- Contact probe adjustable (NA = 0.6, WD = 0-2500 um) for LN Spectrometers
View all
- Probe extender (80 mm) for LN Spectrometers
- Probe extender (160 mm) for LN Spectrometers
- Vial adaptor - side measurment for LN Spectrometers
- Vial adaptor - bottom measurment for LN Spectrometers
- Calibration tool for LN spectrometers with polystyrene
- Calibration tool for LN spectrometers with calcite
- Pill maker for LN Spectrometers
- Probe cover for LN Spectrometers
- Black out cover for Short/Middle & Long Distance probes.
- Disposible tips for LN Probes (Box of 30pcs)
- Disposible tips for LN Probes (20 boxes of 30pcs) (edited)
- Belt holster for miniRaman Spectrometer
- Charging Dock for miniRaman Spectrometer
- Carry case for miniRaman Spectrometer & miniRaman PRO spectrometer, standard
Use Cases Use Cases Use Cases

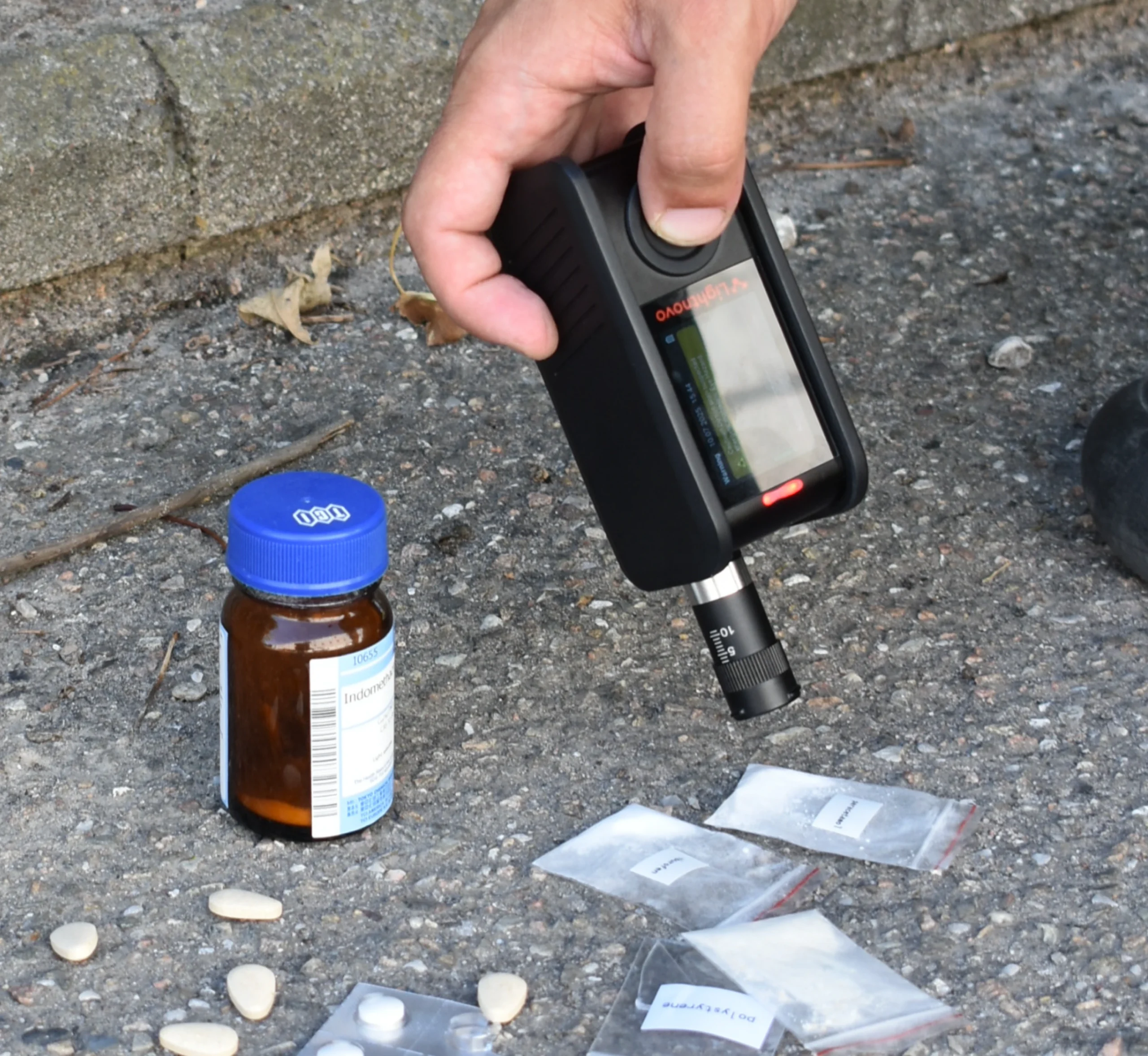

miniRaman spectrometer, equipped with a high-precision contact probe and powered by Miraspec software, enables direct chemical analysis of tables and powders, through plastic packaging. This innovative approach ensures rapid, non-invasive testing while delivering high-quality, reproducible results.

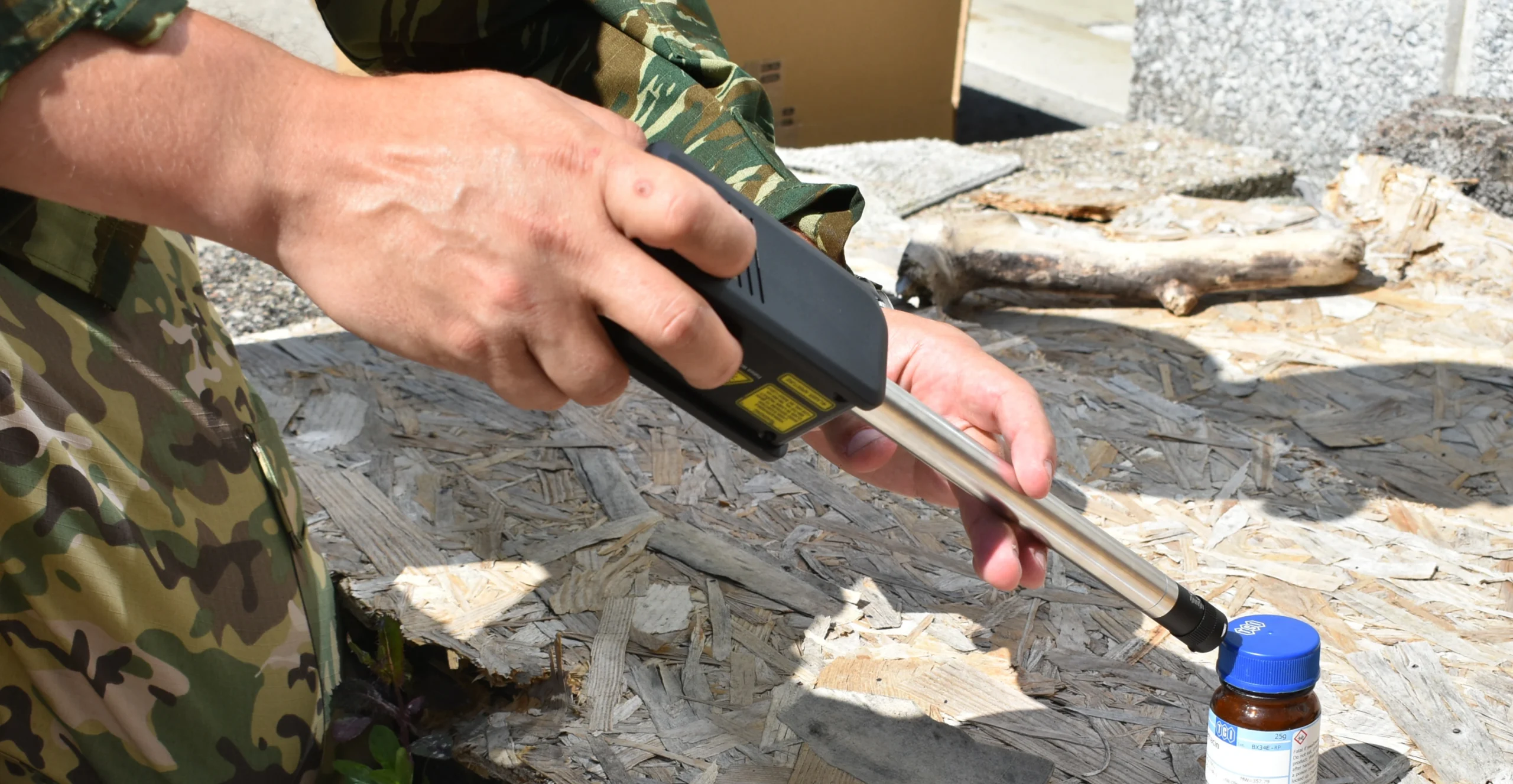

miniRaman Spectrometer, equipped with a high-precision liquid probe, ebales measurement of hazardous liquids from distance or through various packages. This innovative approach outperforms the state- of- the- art by a factor of 3.5x in pure substances.
