From Module to Full Systems From Module to Full Systems From Module to Full Systems
Lightnovo offers modular OEM building blocks ā from core spectrographs to fully integrated Raman systems ā for partners embedding Raman into their own instruments, workflows, and platforms.
Our OEM solutions are structured, performance-driven, and contract-defined, ensuring reliable integration with clear technical and commercial scope.
OEM Package Structure OEM Package Structure OEM Package Structure
| Module / Product | miniRaman | MRs Pro | RGs | RGs Pro |
|---|---|---|---|---|
| 1.Spectrograph | ||||
| 2. Spectrograph + LBDS* | ||||
| 3. Spectrograph + LBDS* + Microscopy | ||||
*LBDS - Laser beam delivery system

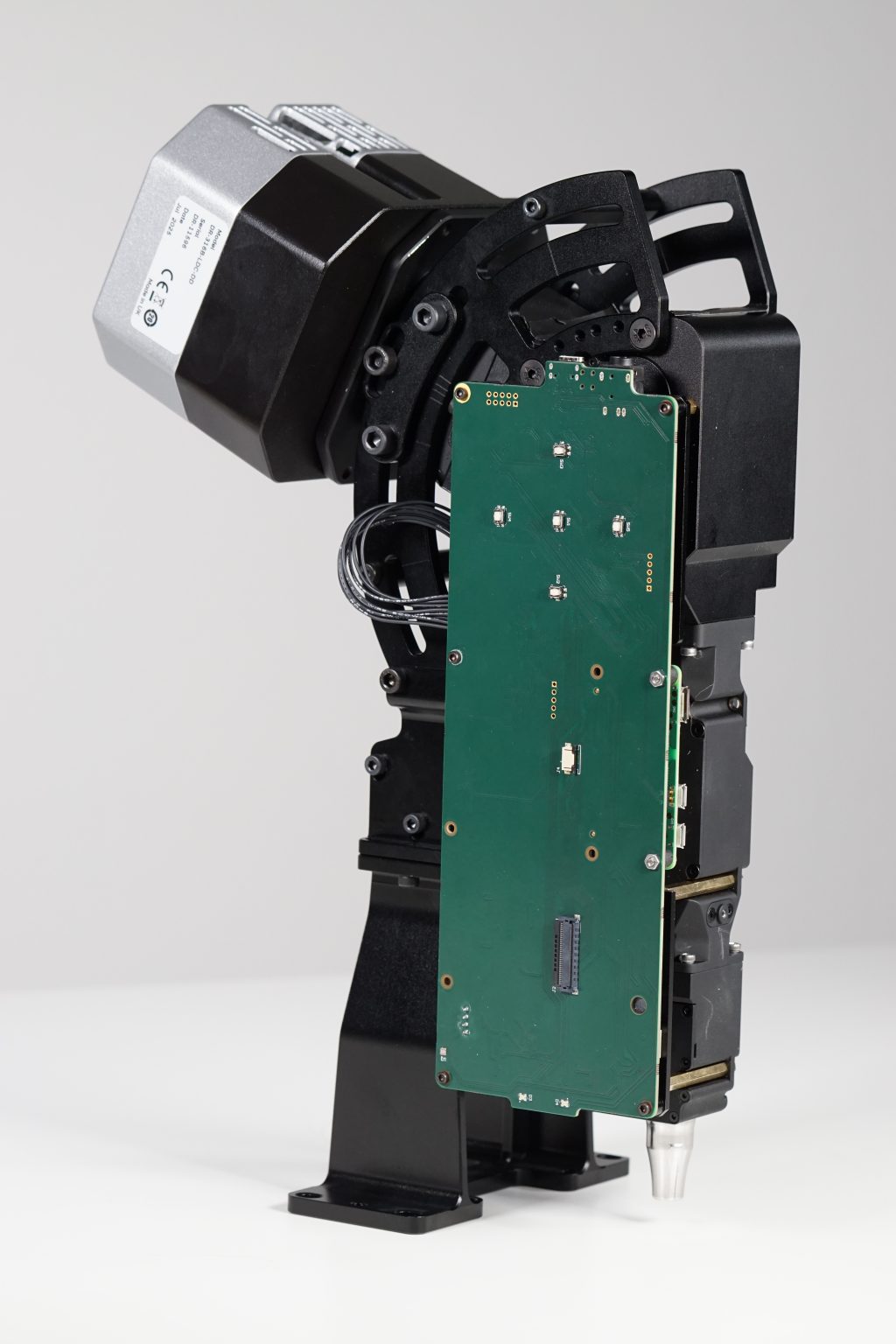

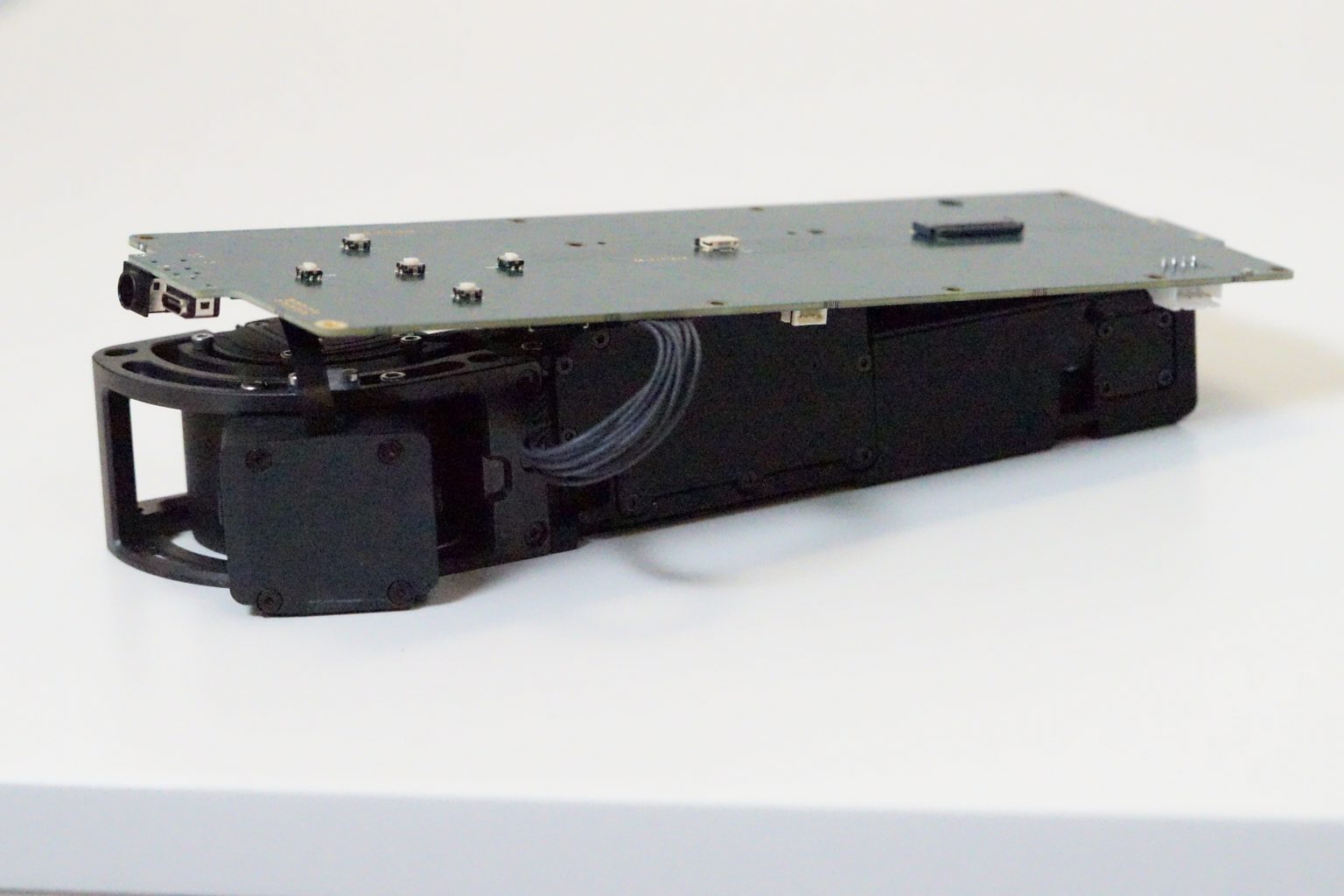

Universal OEM Board * (with LED, 2 channels, firmware, precalibrated, requires SDK)
1. with the different cameras we already have, SDK offered for Andor only
2. mRs when sold with board - always with SW and precalibrated.
FOR ALL SOLUTIONS: Electrical, firmware, and system integration support only if defined in contract
Modular Configuration Modular Configuration Modular Configuration

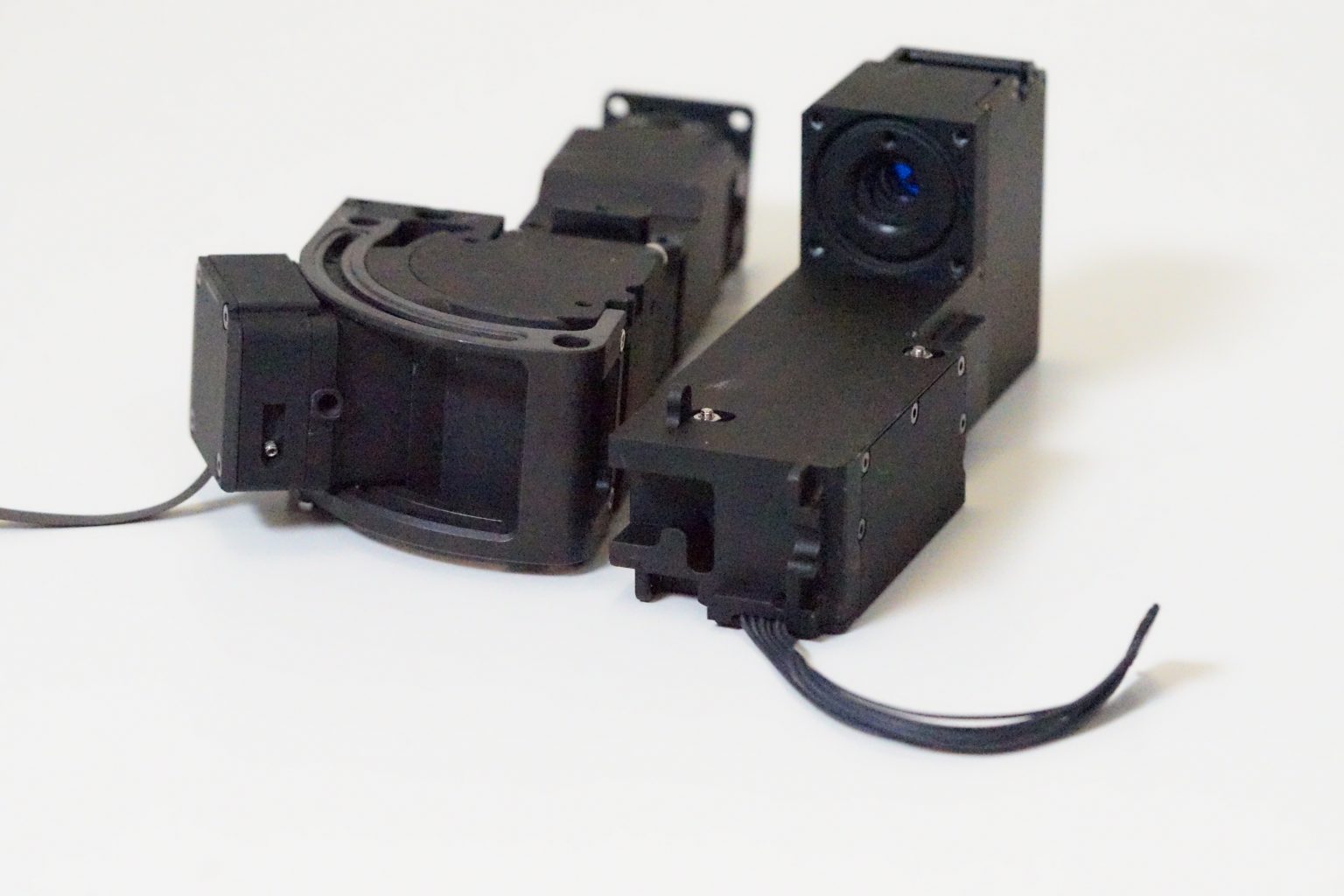

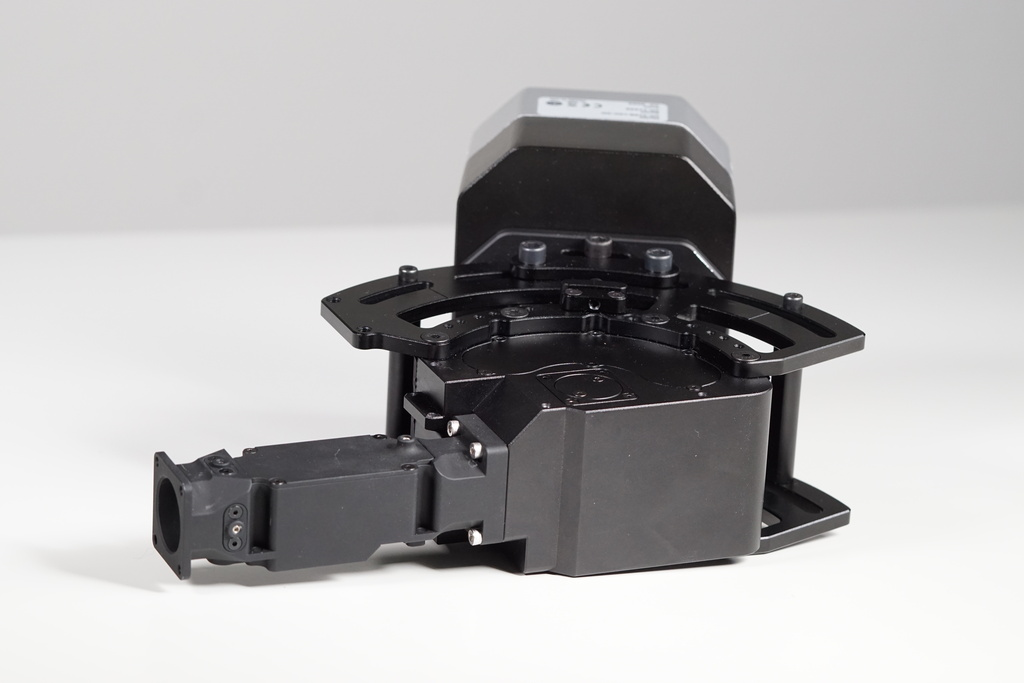

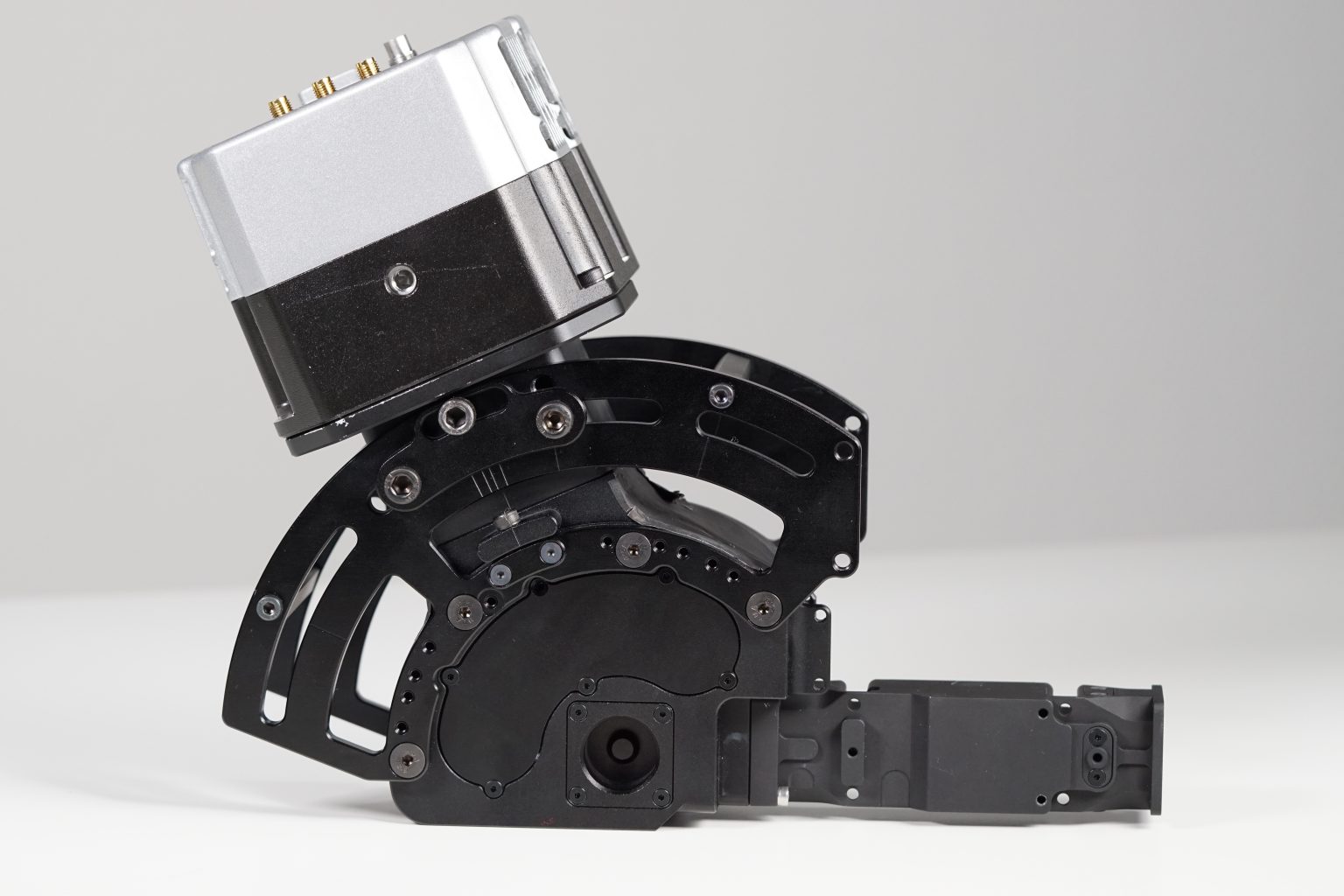

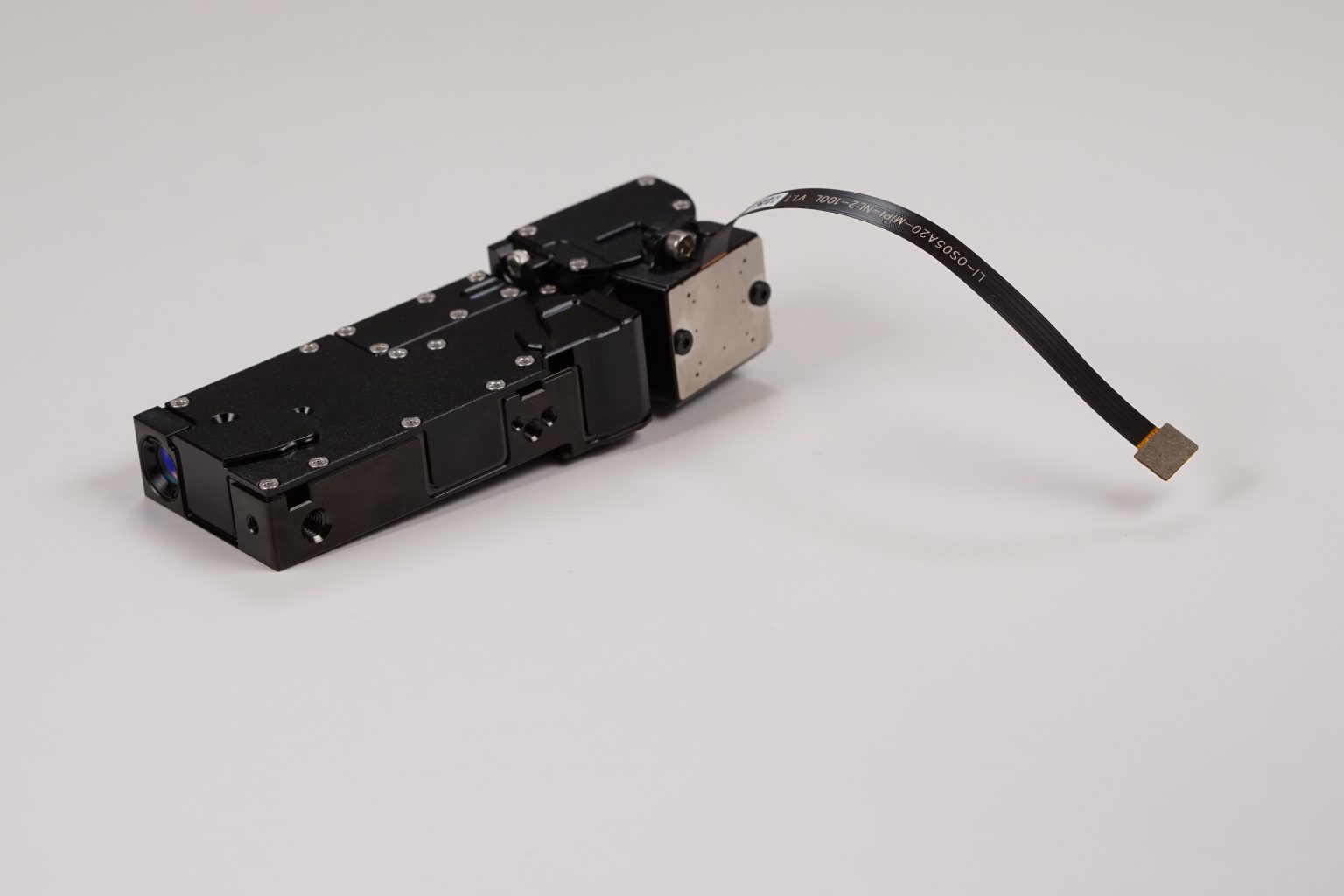

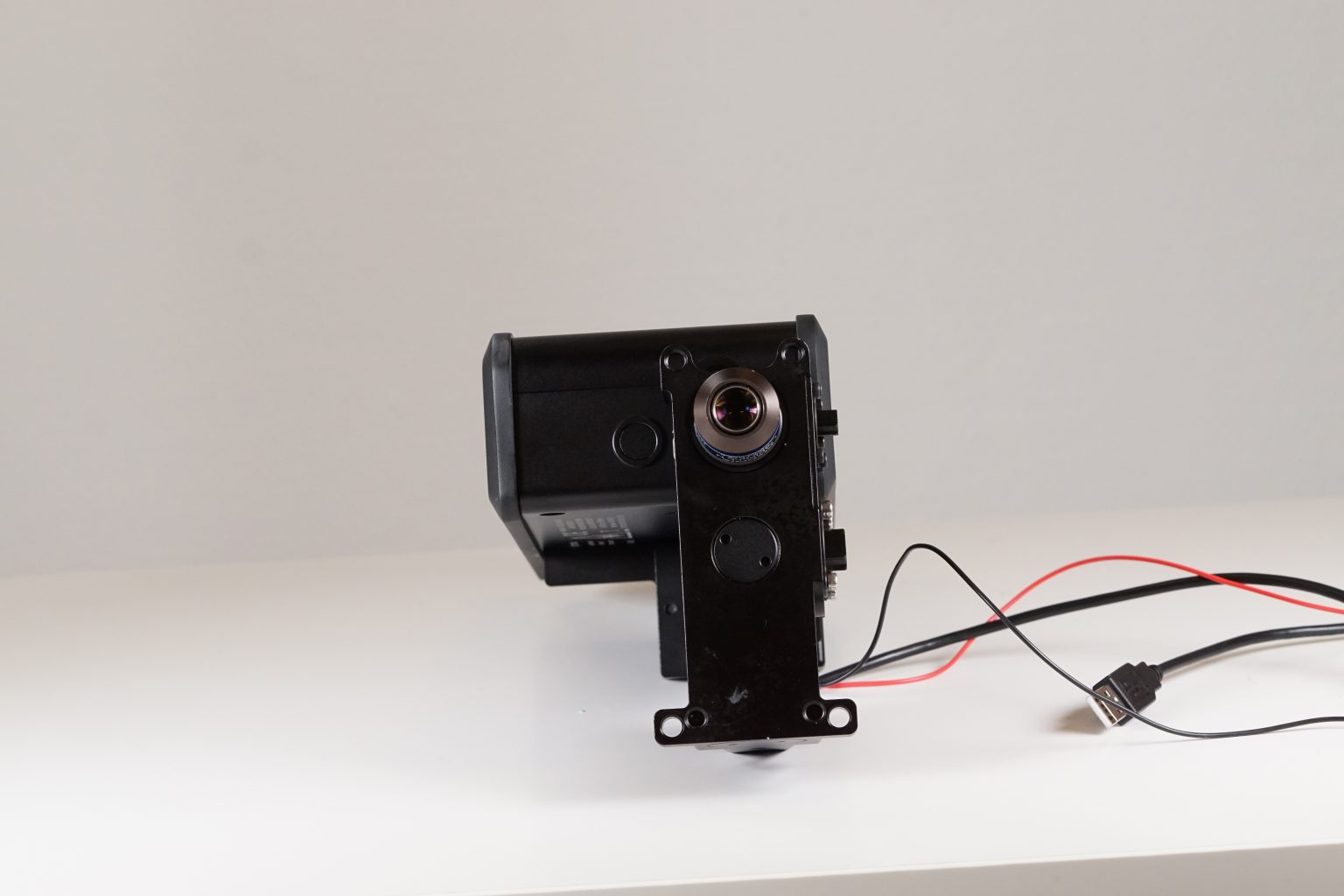

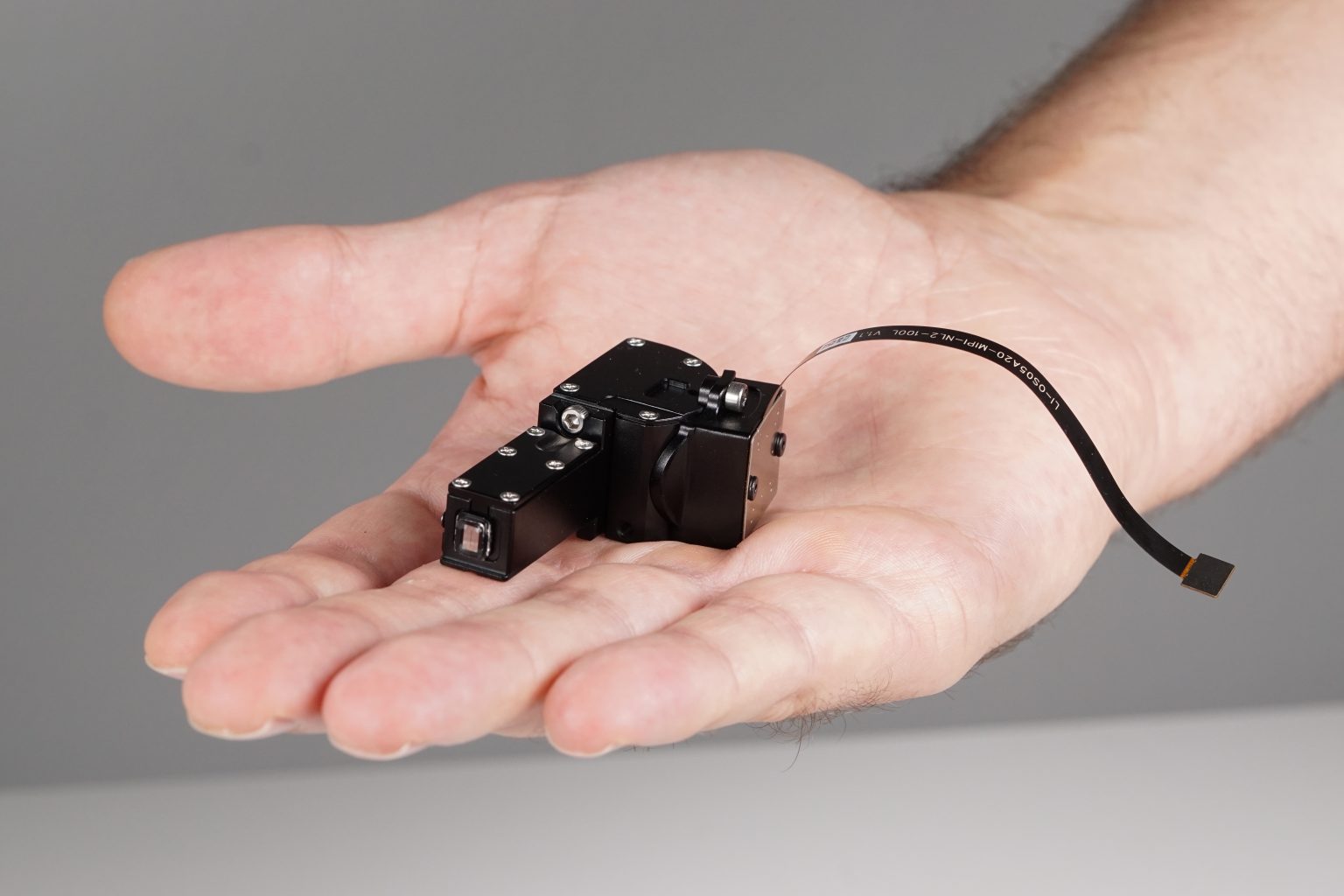

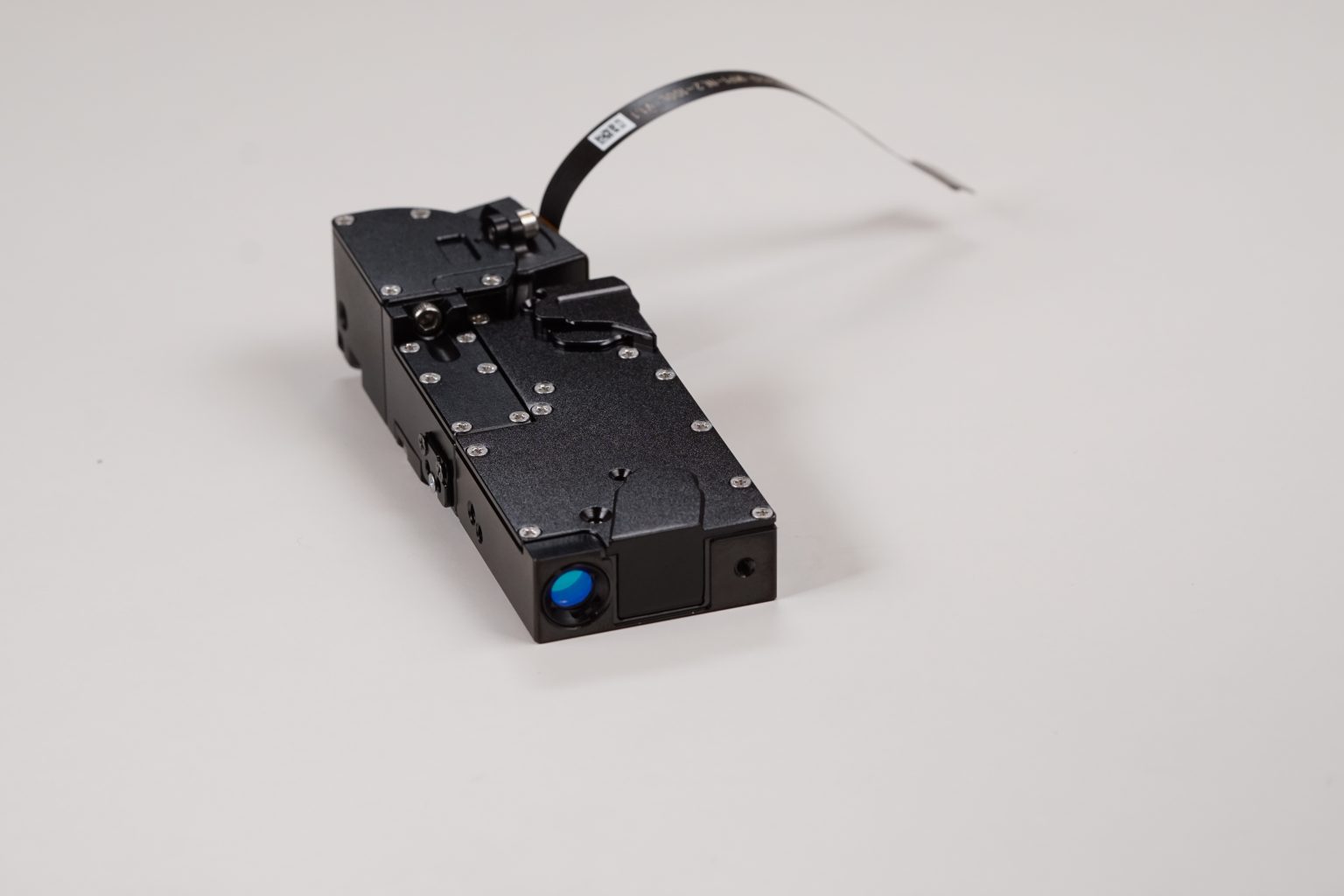

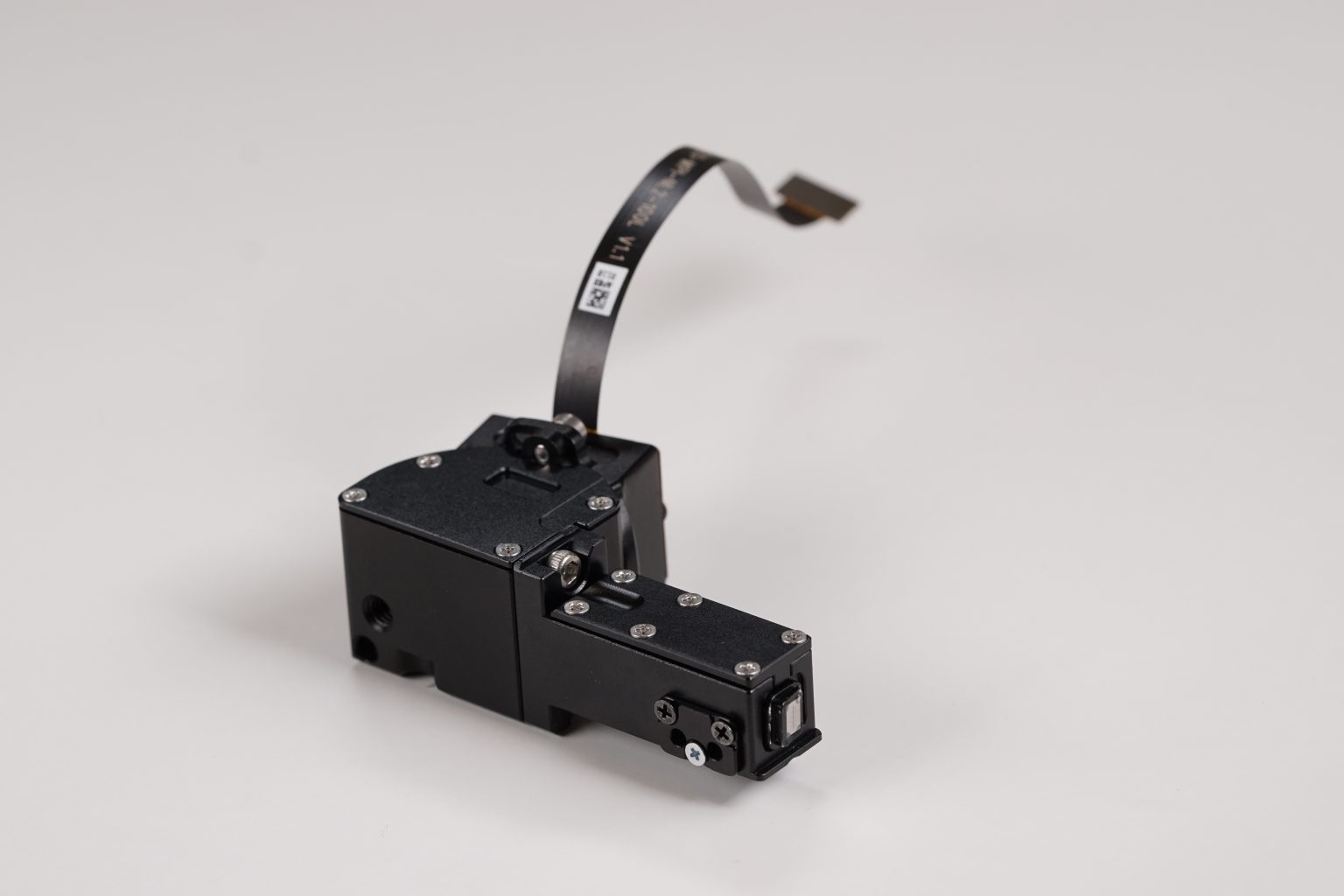

Spectrograph Spectrograph Spectrograph
What it is
The optical core: spectrograph + detector
- mRs
- Spectrograph + Andor Camera
- RGs
Includes
- NHigh-performance Raman spectrograph
- NDetector configuration as specified
- NFactory optical calibration
- NMechanical and optical specifications
Typical use cases
- NOEM instruments
- NEmbedded analytical systems
- NResearch platforms
- NNon-Raman spectral applications
Support scope
- NHardware delivered calibrated
- NDetector configuration as specified
- NNo system-level integration support unless contracted
Brochures & Manuals Brochures & Manuals Brochures & Manuals
Please, enter your Full Name & Email to unlock downloads or log in to your account.

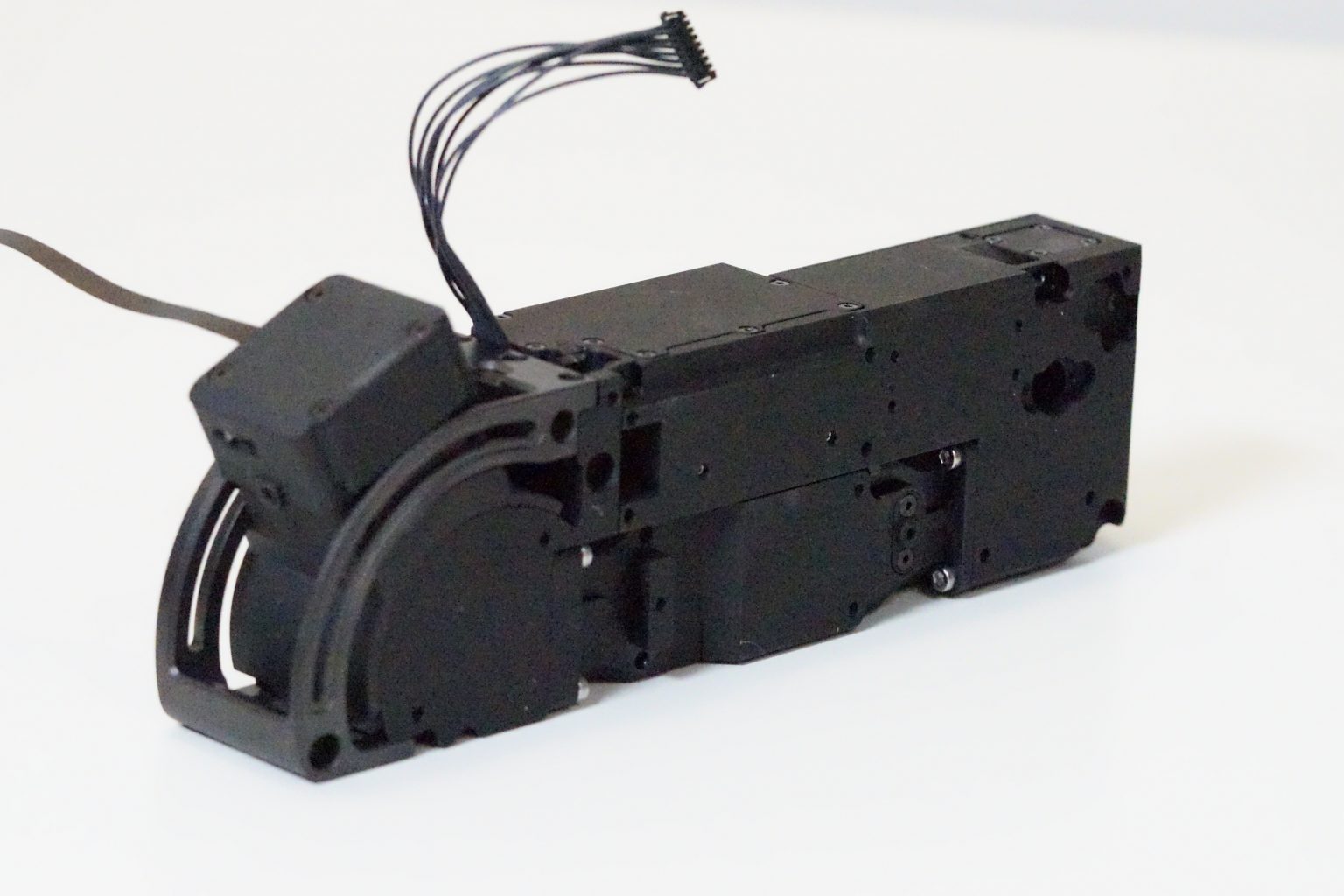

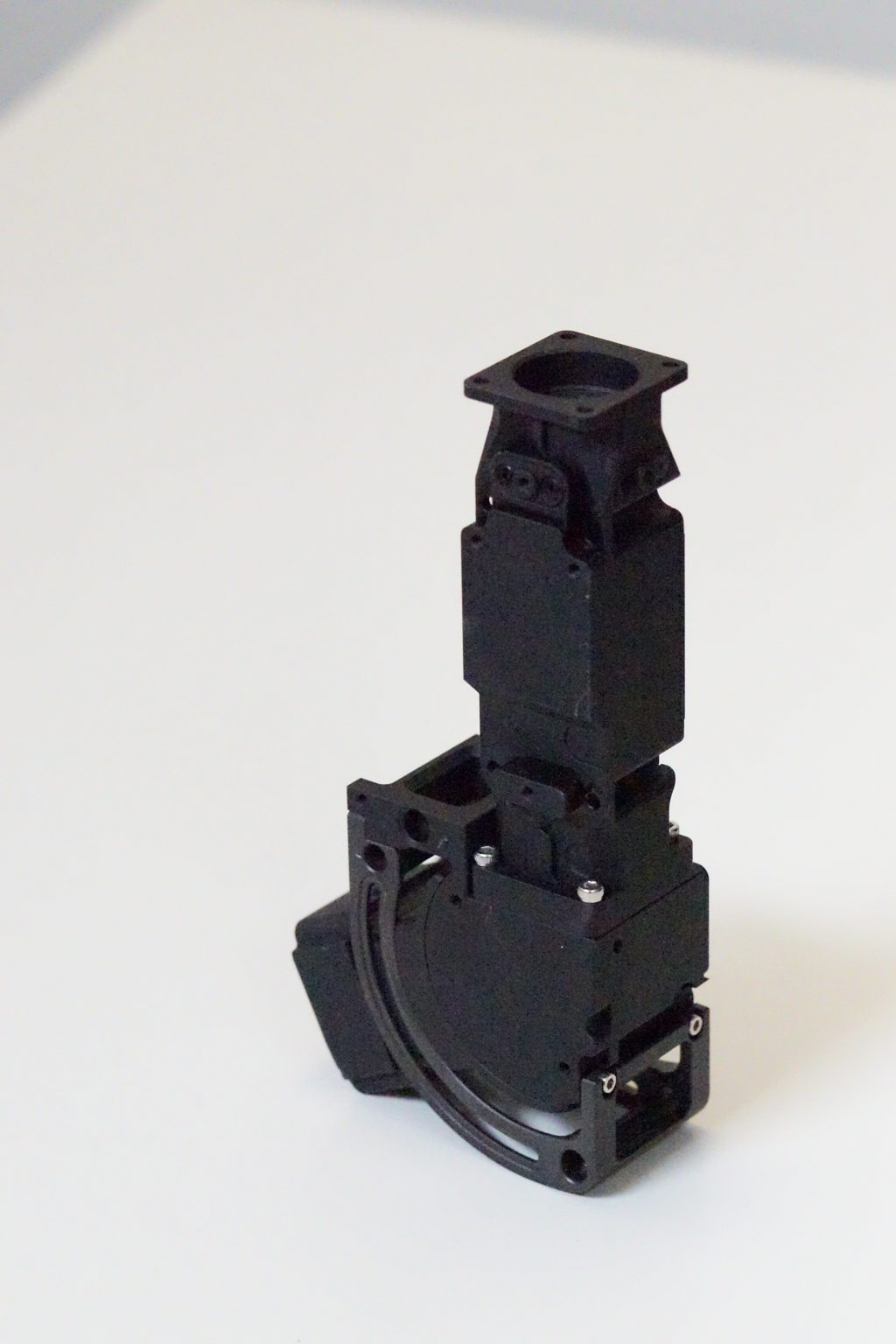

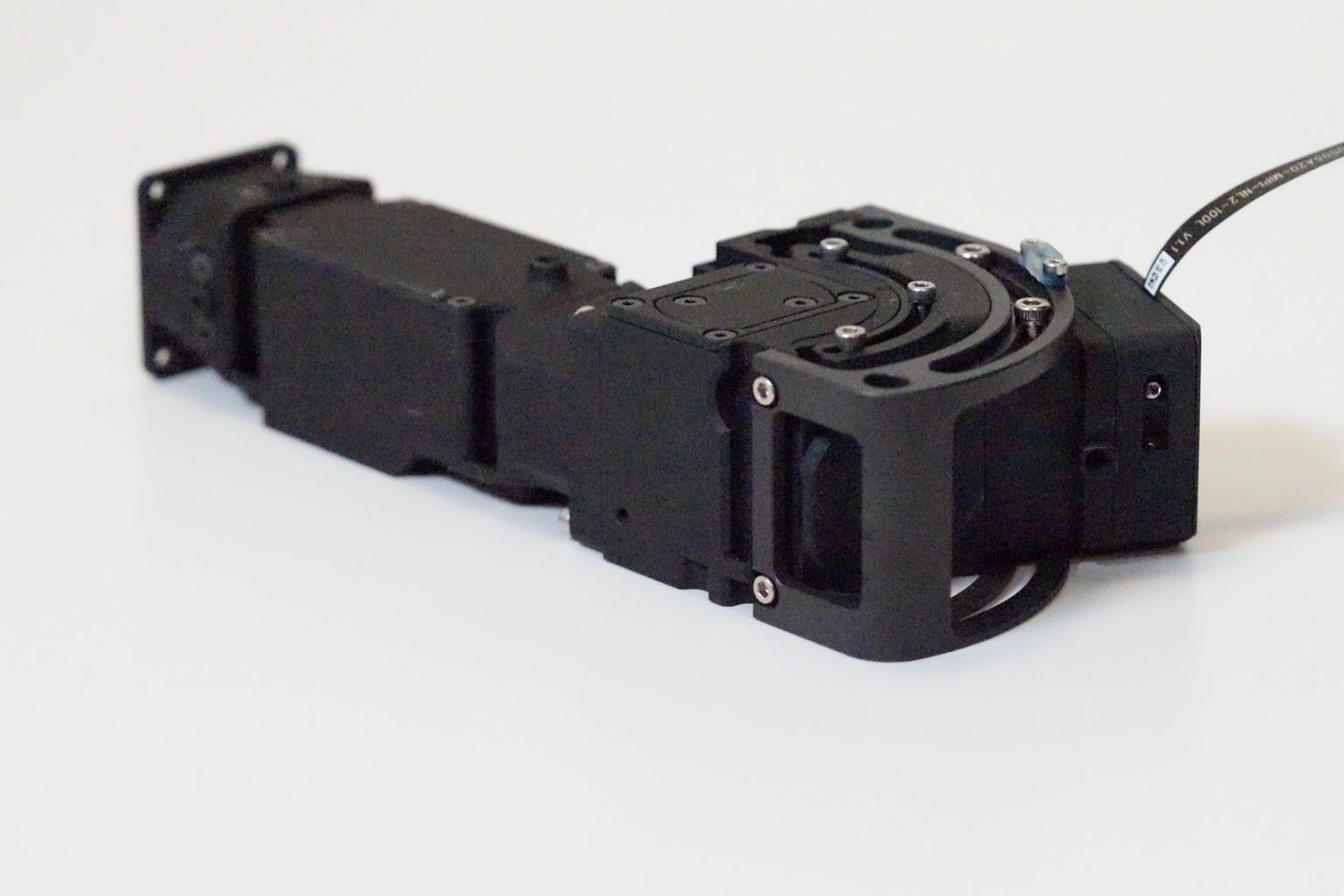

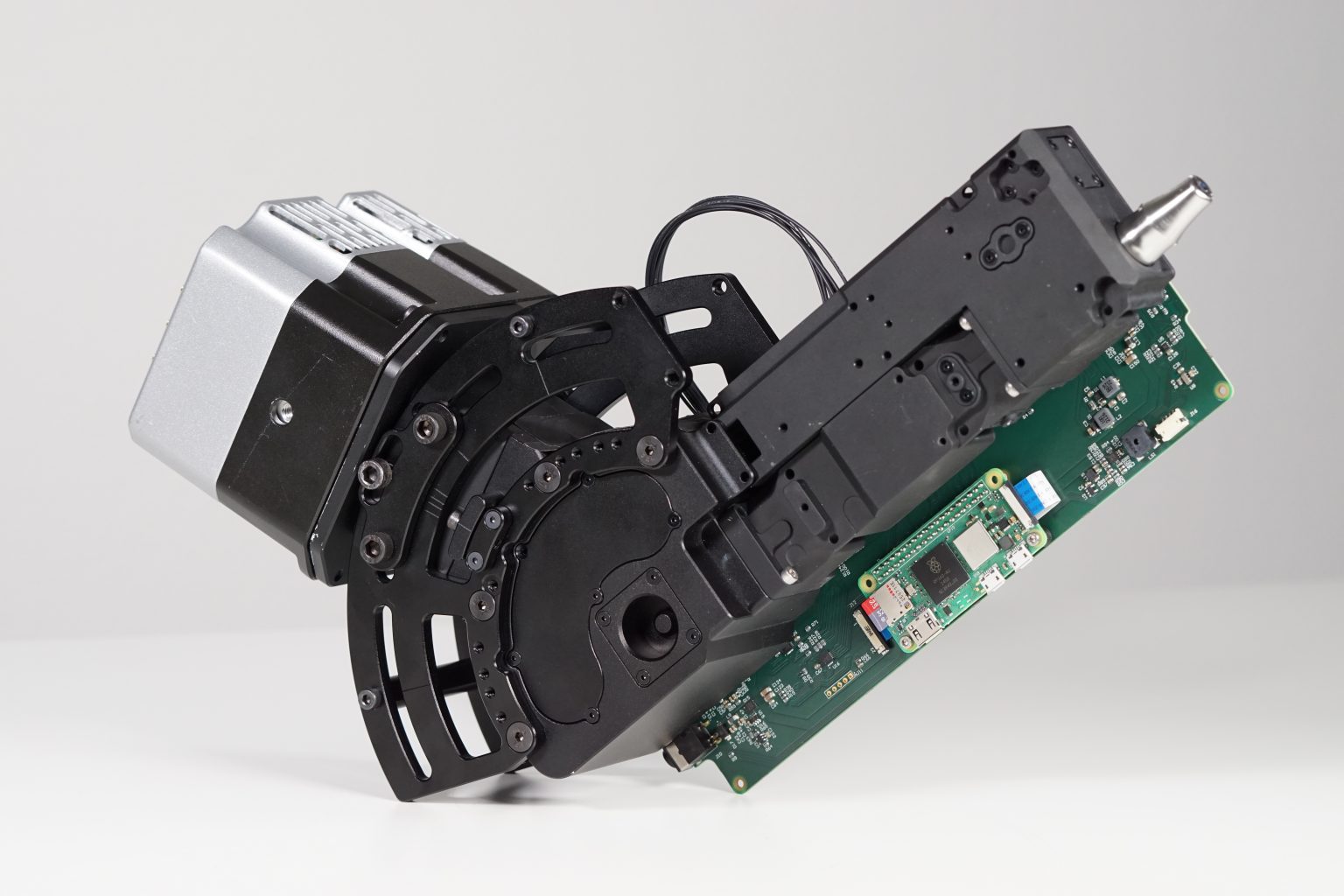

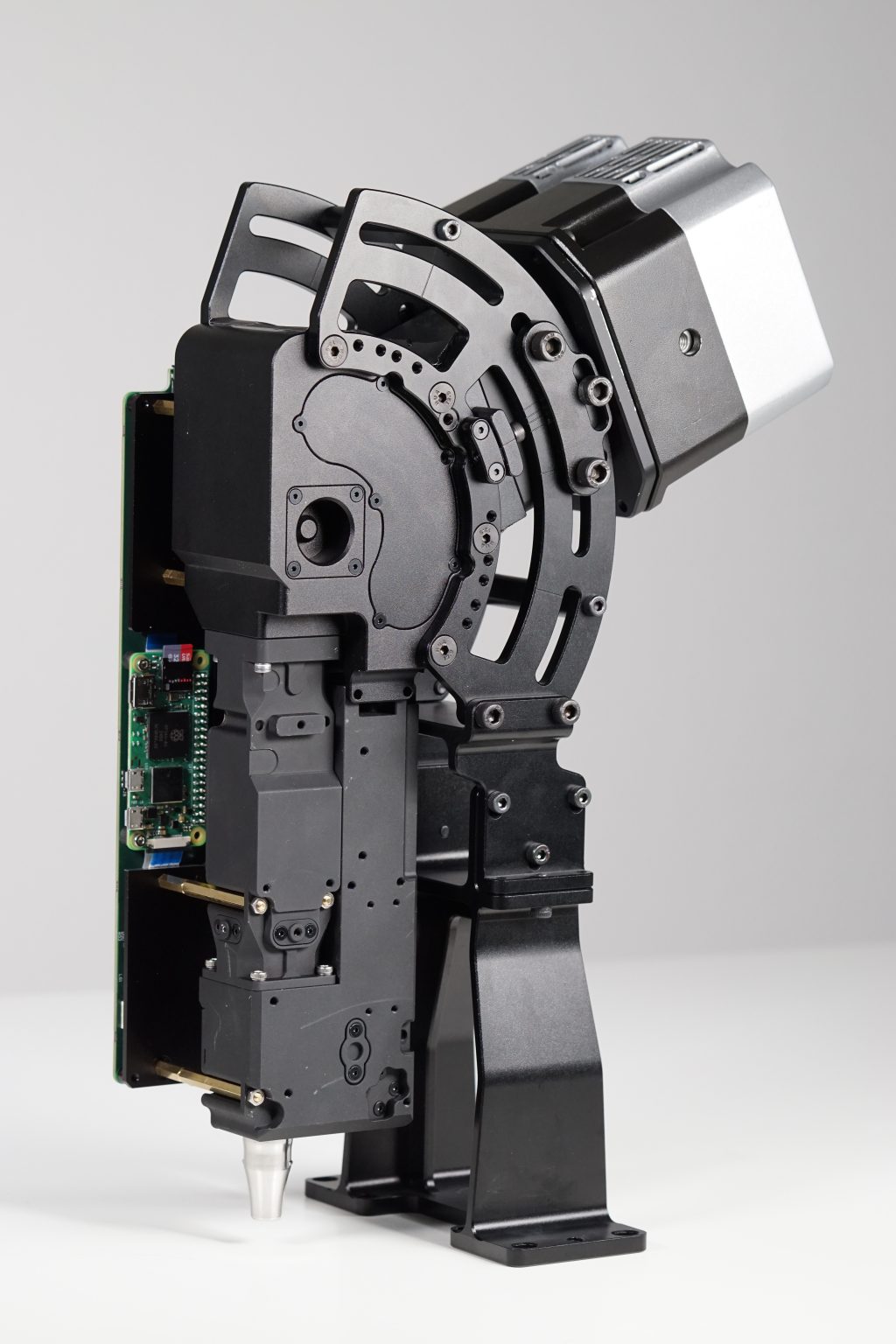

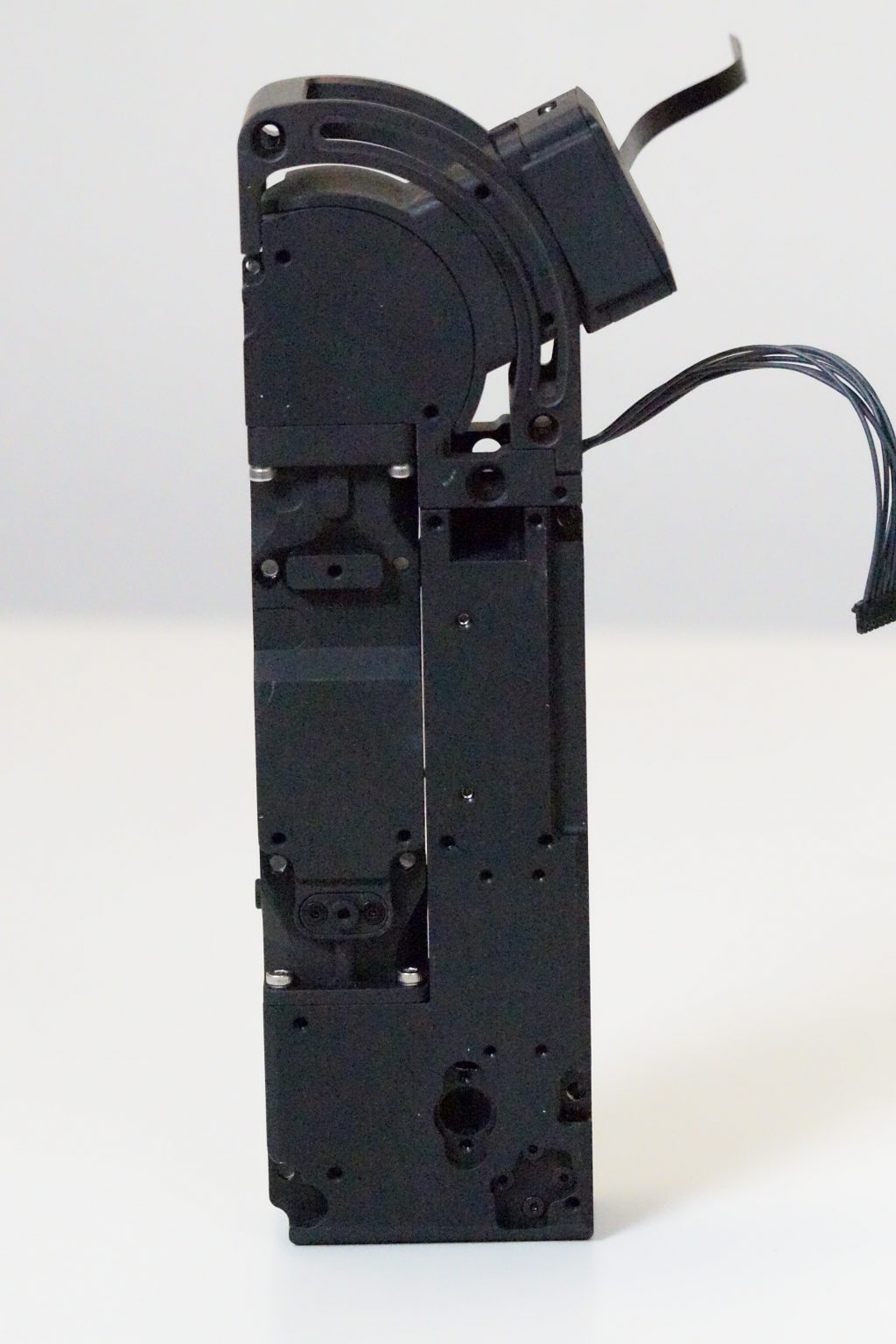

Spectrograph + Laser beam delivery system (LBDS) Spectrograph + Laser beam delivery system (LBDS) Spectrograph + Laser beam delivery system (LBDS)
What it is
A complete Raman measurement engine, ready for optical integration.
- mRs
- RGs
- RGs + Andor Camera
Includes
- NSpectrograph
- NLaser beam delivery system
- NReference channel (where applicable)
- NFactory calibration (optical + Raman)
Typical use cases
- NIndustrial Raman systems
- NInline / at-line analyzers
- NCustom Raman platforms
Support scope
- NDelivered as a calibrated Raman engine
- NElectrical, firmware, and system integration support only if defined in contract
- NDesigned for customers with in-house engineering capabilities
Brochures & Manuals Brochures & Manuals Brochures & Manuals
Please, enter your Full Name & Email to unlock downloads or log in to your account.

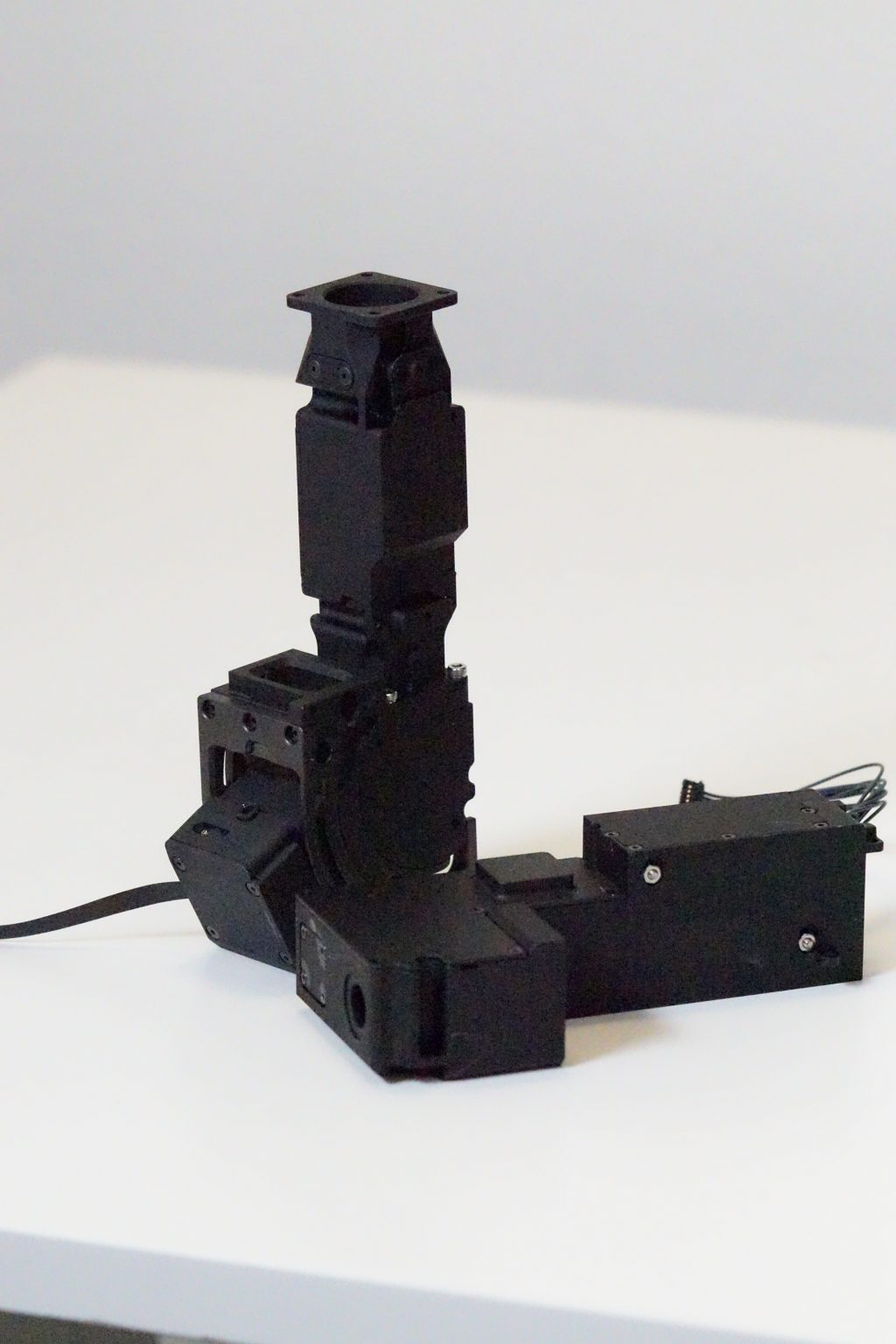

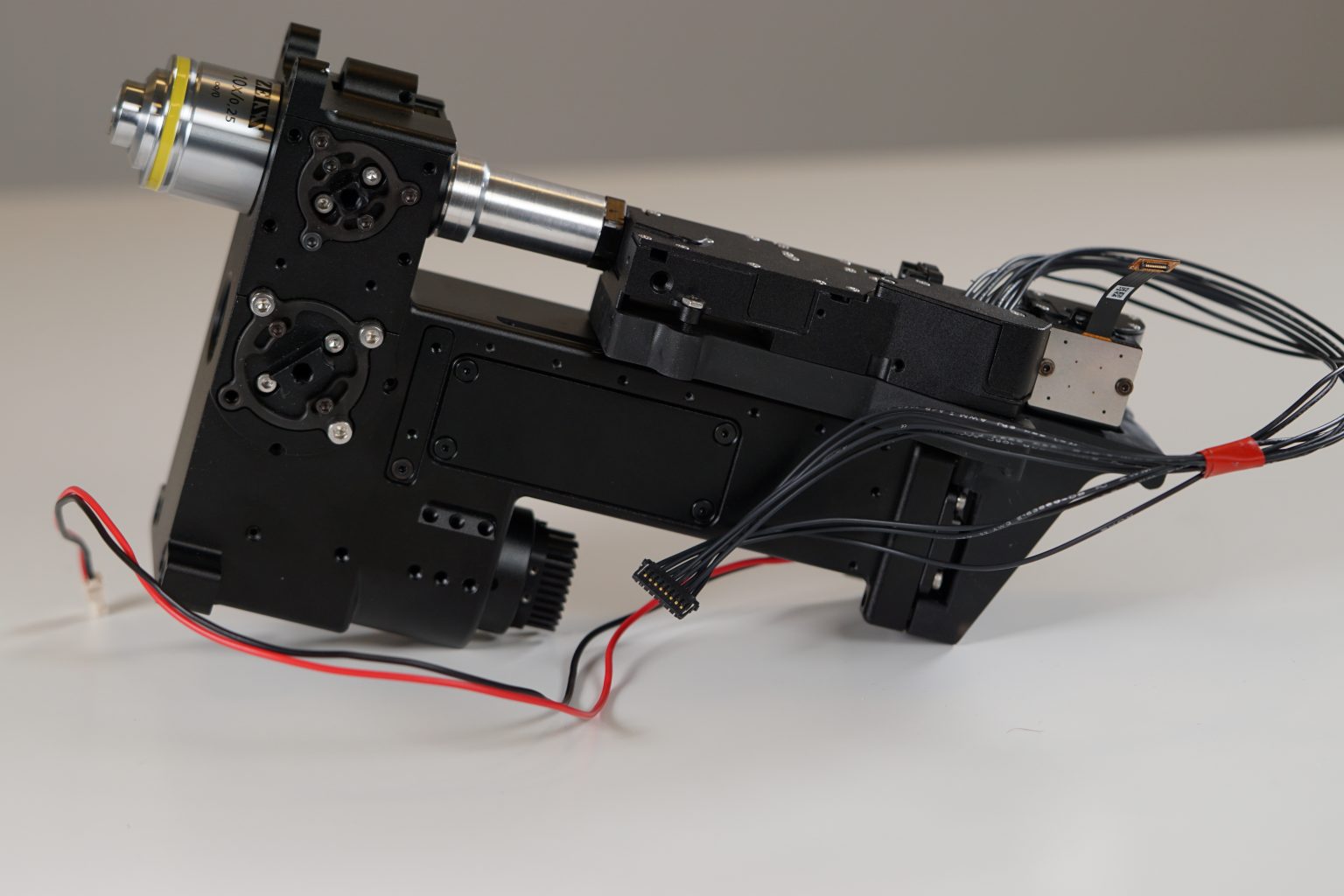

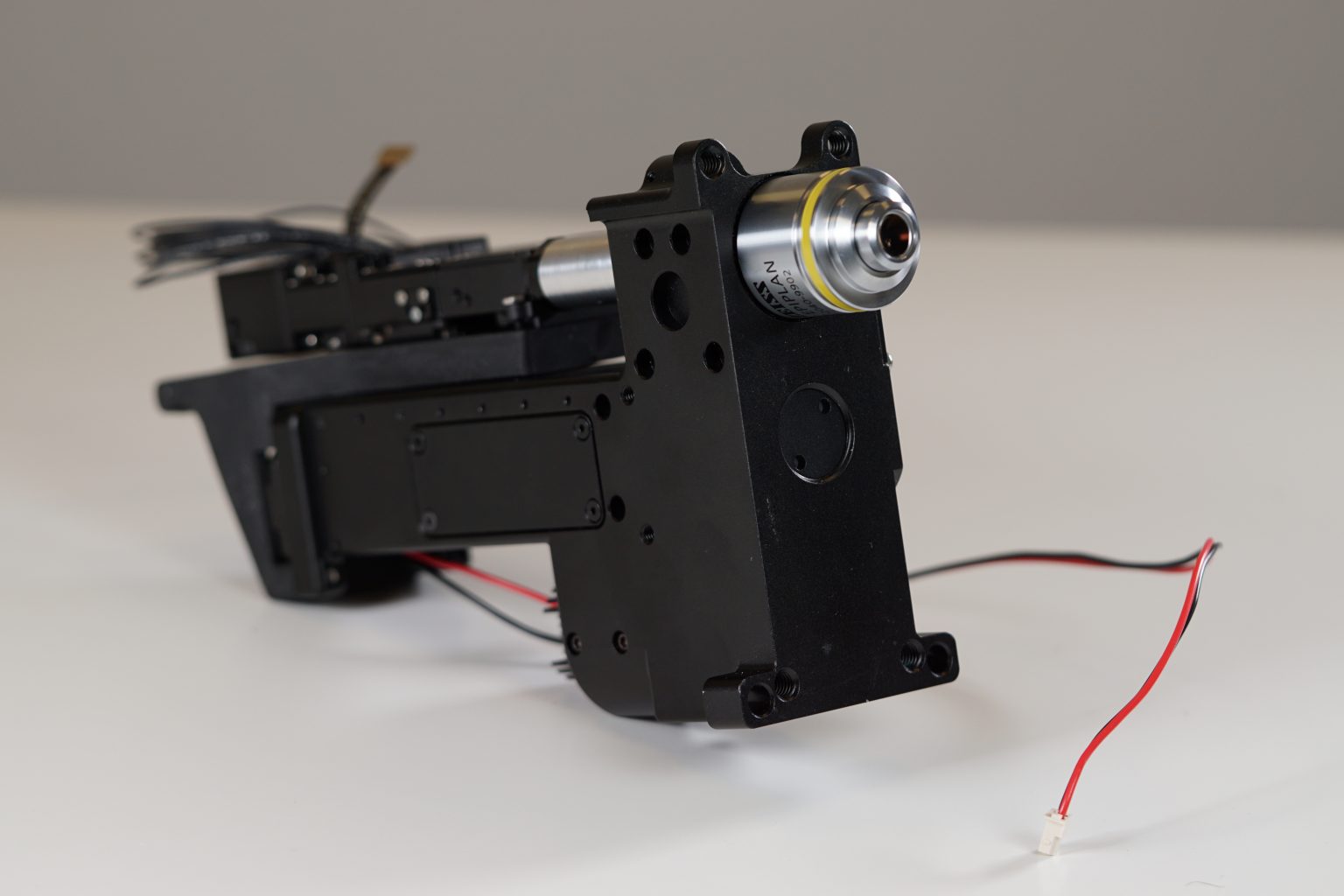

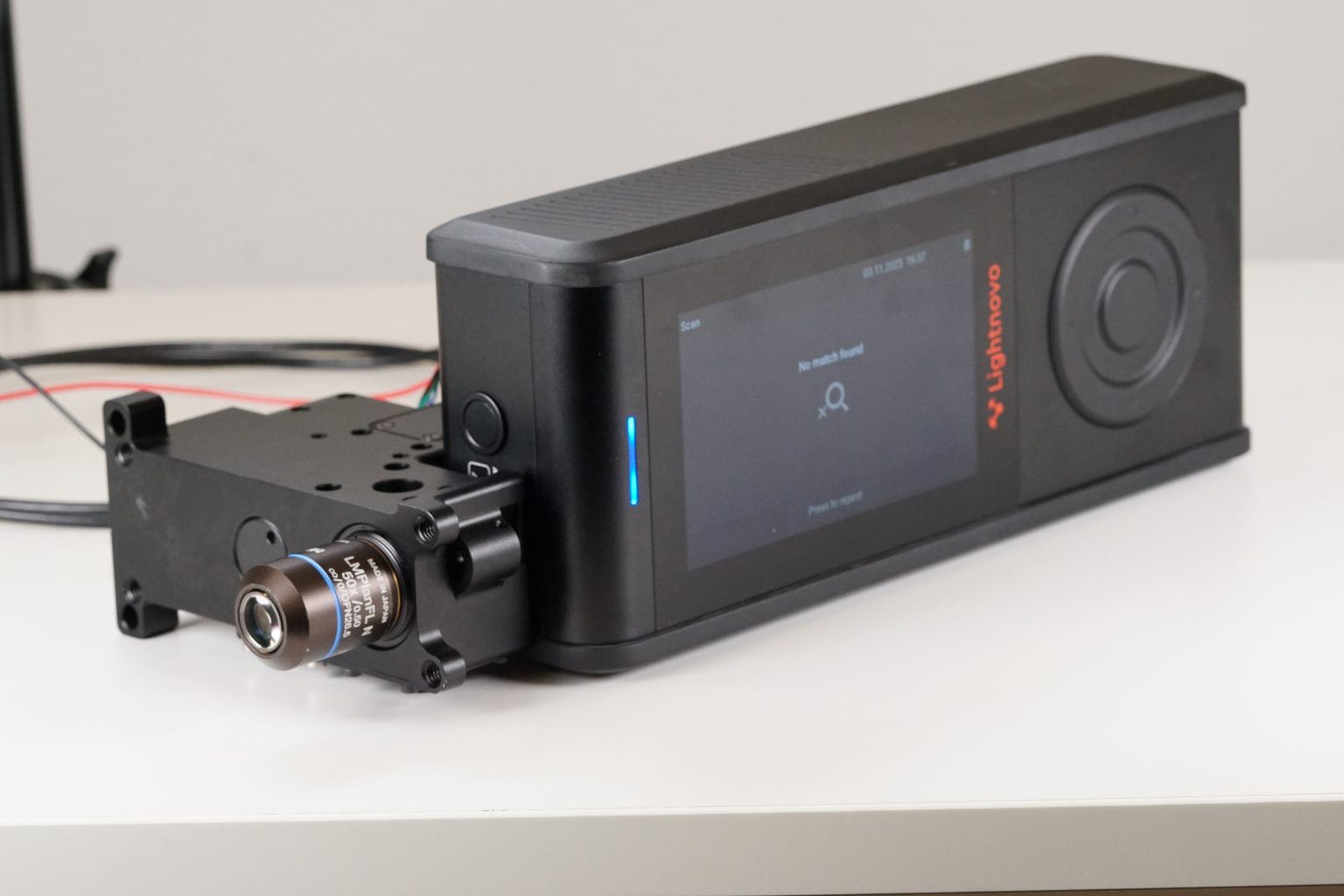

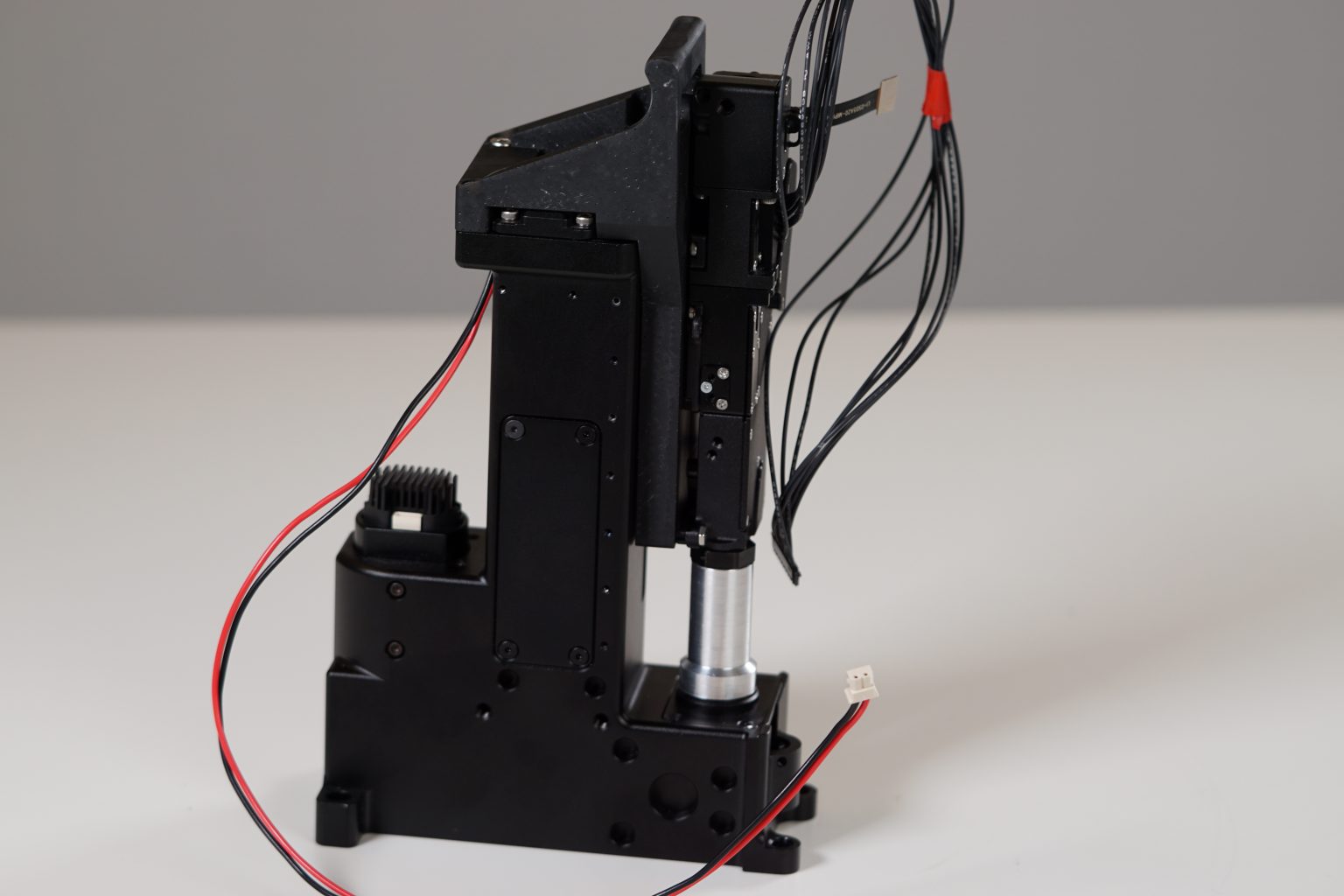

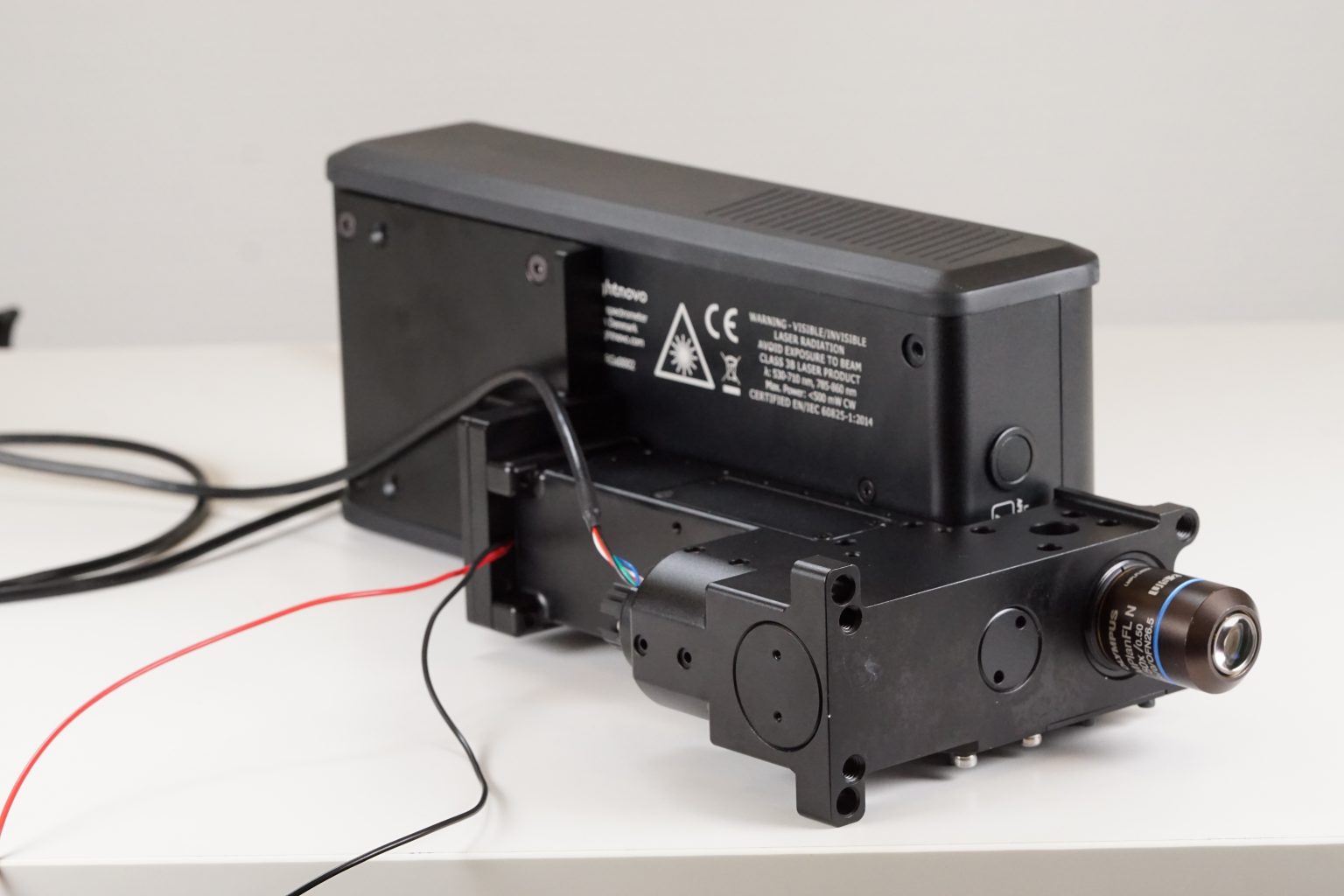

Spectrograph + Laser beam delivery system (LBDS) + Microscopy Elements Spectrograph + Laser beam delivery system (LBDS) + Microscopy Elements Spectrograph + Laser beam delivery system (LBDS) + Microscopy Elements
What it is
OEM Raman Modul 2 + microscopy building blocks for advanced analytical platforms.
- RGs
- mRs
Includes
- NSpectrograph
- NLaser beam delivery system
- NMicroscopy optics and adapters
- NAlignment and calibration at factory
Typical use cases
- NOEM Raman microscopes
- NLife science & materials research tools
- NAdvanced imaging platforms
Support scope
- NFactory-validated optical performance
- NMechanical and optical documentation
- NIntegration, automation, and custom workflows handled contractually
Brochures & Manuals Brochures & Manuals Brochures & Manuals
Drawing for OEM mRs + Microscopy v.module 3 (.pdf, 221.59 KB) Download
Drawing for OEM mRs PRO + Microscopy v.module 3 (.pdf, 233.67 KB) Download
Drawing for OEM RGs + Microscopy v.module 3 (.pdf, 264.06 KB) Download
Drawing for OEM RGs PRO + Microscopy v.module 3 (.pdf, 271.52 KB) Download
Drawing (.dxf) for OEM mRs PRO + Microscopy v.module 3.dxf (.zip, 734.83 KB) Download
Drawing (.dxf) for OEM mRs + Microscopy v.module 3.dxf (.zip, 745.26 KB) Download
Drawing (.dxf) for OEM RGs + Microscopy v.module 3.dxf (.zip, 832.33 KB) Download
Drawing (.dxf) for OEM RGs PRO + MIcroscopy (.zip, 905.62 KB) Download
Why partners with us Why partners with us Why partners with us
Why Lightnovo OEM
Instrument-grade Raman core
Used in miniRaman and RG series ā not a lab prototype module
Scalable and modular architecture
Single-laser ā dual-laser ā low-frequency ā Ā microscopy-ready
Integration-ready design
Mechanical drawings, SDK access, calibration framework included
Optical consistency
Cross-platform spectral compatibility and validation stability
Explicit OEM scope
Defined deliverables, validation responsibility, lifecycle support
Letās Build Your Raman Platform ā The Right Way Letās Build Your Raman Platform ā The Right Way Letās Build Your Raman Platform ā The Right Way
Whether you are integrating a compact Raman engine or building a complete analytical system, Lightnovoās OEM solutions give you performance, clarity, and a scalable partnership model.
