MiniRaman spectrometer

is an advanced miniaturised Raman spectrometer with high sensitivity for most sophisticated applications.

MiniRaman spectrometer specification

Lasers

  • 785 nm (power range from 18 to 176 mW on a sample)
  • 660 nm (power range from 1 to 32 mW on a sample)

Spectral range

  • 400-2700 cm-1 (at 785 nm laser exitation),
  • 2750-4500 cm-1 (at 660 nm laser exitation)

Spectral resolution

  • 7-15 cm-1 (slit size dependent; slit size can be customized)

Sensitivity in point mode at laser wavelength 785nm (determined as SNR of polystyrene spectrum).

  • SNR 350:1
  • spectral range 400-2700 cm-1
  • laser wavelength: 785 nm
  • laser power: 100 mW
  • integration time: 0.1 s
  • number of repetitions: 1

Sensitivity in point mode from laser wavelength 660 nm (determined as SNR of polystyrene spectrum).

  • SNR 150:1
  • spectral range 2750-4500 cm-1
  • laser wavelength: 660 nm
  • laser power: 32 mW
  • integration time: 0.5 s
  • number of repetitions: 1

MiniRaman MRs accessories:

  • long working distance probe, f=30 mm (NA=0.05, laser spot size 50 µm)
  • middle working distance probe, f=15 mm (NA=0.1, laser spot size 15 um)
  • short working distance probe, f=6.25 mm (NA=0.34, laser spot size 3 µm)
  • immersion probe; ideal for in-vivo skin measurements, direct contact measurements of powders and liquids (f=6.21 mm, NA=0.38, spot size 2.5 µm)
  • sample holders
  • axial focusing accessories
  • light protection sample cover
  • objective covers
  • adapters for standard microscopy objectives (RMS, M25/0.75, M27/1)

miniRaman and diamondDiamond verification with MiniRaman

miniRaman long distance probe

Long distance probe helps to make measurements in hard reach locations

powders ny miniRaman

MiniRaman and powder measurements

skin diagnostics

MiniRaman helps with skin diagnostics

A4 MiniRaman spectrometer brochure Download PDF

A4 AlcoSens brochure Download PDF

A4 AlcoSens brochure RU Download PDF

A4 AlcoSens brochure UA Download PDF

MiniRaman spectrometer drawing Download PDF
Long lens WD holder Download PDF
M25 0.75 to M12 adaptor Download PDF
M27 1 to M12 adaptor Download PDF
RMS to M12 adaptor Download PDF
SM1 to M12 adaptor Download PDF

MiniRaman spectrometer benefits

Small

Low Price

Quantitative Analysis

Smart

Sensitive

MiniRaman spectrometer variations

MiniRaman Standard

includes one laser: 785 nm, power range on a sample 5-50 mW

MiniRaman Power

includes one laser: 785 nm, power range on a sample 15-150 mW

MiniRaman SERS

includes one laser with optical isolator: 785 nm, power range
on a sample 0.5-5 mW

MiniRaman Power Dual

includes two lasers: 785 nm, power range on a sample 15-150 mW660 nm, power range on a sample 1-32 mW

MiniRaman Standard Dual

includes two lasers: 785 nm, power range on a sample 5-50 mW660 nm, power range on a sample 1-32 mW

Fill the form

and our managers will contact you soon

MiniRaman accessories

We have different accessories for MiniRaman in stock. You will need them, for sure, if you use MiniRaman spectrometer.

Long Working Distance Probe

f=30 mm, NA=0.05, laser spot size 50 µm
Technical drawing Download PDF

400 €

Middle Working Distance Probe

f=15 mm, NA=0.1, laser spot size 15 µm

400 €

Short Working Distance Probe

f=6.25 mm, NA=0.34, laser spot size 3 µm

800 €

Immersion Probe

ideal for in-vivo skin measurements, direct contact measurements of powders and liquids, f=6.21 mm, NA=0.38, laser spot size 2.5 µm

500 €

Axial Focusing Accessories

300 €

Light Protection Sample Cover

80 €

Objective Covers Set Accessories

60 €

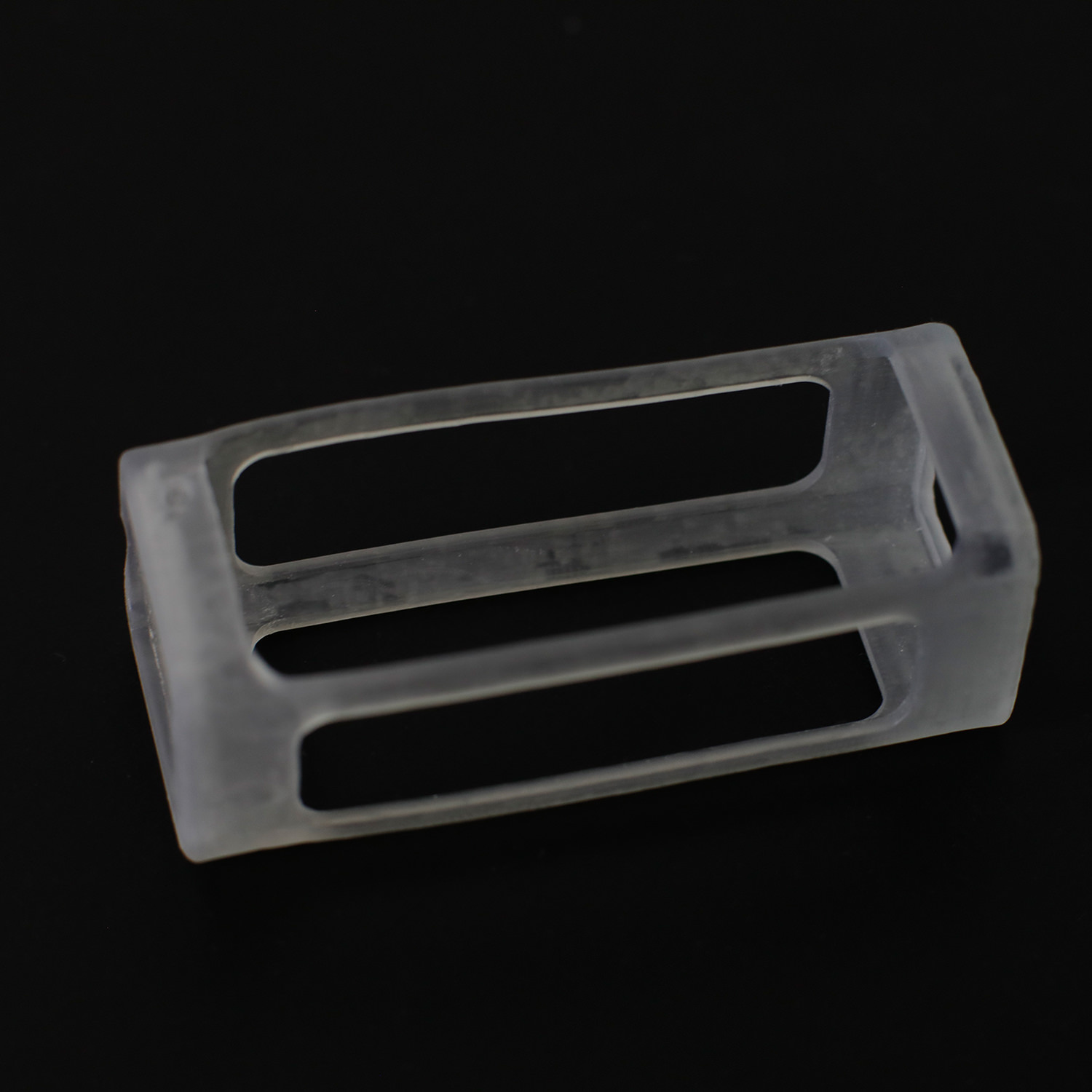

Cover for MiniRaman

20 €

Adapter for Microscopy RMS

Technical drawing Download PDF

35 €

Adapter for Microscopy SM1

Technical drawing Download PDF

35 €

Adapter for Microscopy M25/0.75

Technical drawing Download PDF

35 €

Adapter for Microscopy M27/1

Technical drawning Download PDF

35 €

Adapter Ring

30 €

Distance Probe for Limited Access Measurements

50 €

Calibration tool with polystyrene

80 €

Contact probe for tissue and scattering media

50um depth of focus

800 €

Contact probe for tissue and scattering media

100um depth of focus

800 €

Contact probe for tissue and scattering media

150um depth of focus

800 €
